sbgl_voxel.h File Reference

Public API for the SBgl voxel rendering system. More...

#include "sbgl.h"

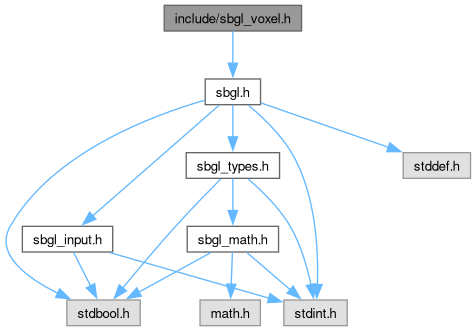

Include dependency graph for sbgl_voxel.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	sbgl_VoxelConfig
	Configuration parameters for initializing the voxel system. More...
struct	sbgl_Material

Typedefs
typedef struct sbgl_VoxelSystem	sbgl_VoxelSystem
	Opaque handle to the voxel system. The internal structure is hidden to maintain a clean public API and facilitate backend-agnostic module development.

Functions
sbgl_VoxelSystem *	sbgl_Voxel_Create (sbgl_Context *ctx, const sbgl_VoxelConfig *config)
	Creates and initializes a new voxel system. This operation allocates GPU resources and internal tracking structures.
void	sbgl_Voxel_Update (sbgl_VoxelSystem *sys, sbgl_Vec3 camera_pos)
	Updates the voxel system state based on the current camera position. This function handles chunk generation requests and manages the LRU cache.
void	sbgl_Voxel_Cull (sbgl_VoxelSystem *sys, sbgl_Mat4 view_proj)
	Performs GPU-driven frustum culling on voxel chunks. MUST be called BEFORE sbgl_BeginDrawing.
void	sbgl_Voxel_Render (sbgl_VoxelSystem *sys)
	Issues the indirect draw calls for visible voxel chunks. MUST be called BETWEEN sbgl_BeginDrawing and sbgl_EndDrawing.
void	sbgl_Voxel_Destroy (sbgl_VoxelSystem *sys)
	Destroys the voxel system and releases all associated resources.
uint64_t	sbgl_Voxel_GetAABBAddress (sbgl_VoxelSystem *sys)
	Returns the device address of the AABB buffer.
uint64_t	sbgl_Voxel_GetInstanceAddress (sbgl_VoxelSystem *sys)
	Returns the device address of the instance buffer.
uint64_t	sbgl_Voxel_GetPaletteAddress (sbgl_VoxelSystem *sys)
	Returns the device address of the material palette buffer.

Detailed Description

Public API for the SBgl voxel rendering system.

Definition in file sbgl_voxel.h.

Typedef Documentation

sbgl_VoxelSystem

typedef struct sbgl_VoxelSystem sbgl_VoxelSystem

Opaque handle to the voxel system. The internal structure is hidden to maintain a clean public API and facilitate backend-agnostic module development.

Definition at line 16 of file sbgl_voxel.h.

Function Documentation

sbgl_Voxel_Create()

sbgl_VoxelSystem * sbgl_Voxel_Create	(	sbgl_Context *	ctx,
		const sbgl_VoxelConfig *	config )

Creates and initializes a new voxel system. This operation allocates GPU resources and internal tracking structures.

Parameters

ctx	Pointer to the active SBgl context.
config	Pointer to the configuration parameters.

Returns

Pointer to the initialized voxel system, or NULL if creation failed.

Definition at line 143 of file sbgl_voxel.c.

                                                                                       {
  /*
   * The voxel system is allocated from the context's persistent arena
   * to remain consistent with the library's memory model.
   */
  SblArena* ctxArena = sbgl_GetContextArena(ctx);
  if (!ctxArena)
    return NULL;

  sbgl_VoxelSystem* sys = SBL_ARENA_PUSH_STRUCT_ZERO(ctxArena, sbgl_VoxelSystem);
  if (!sys)
    return NULL;

  sys->ctx = ctx;
  sys->chunk_radius = config->chunk_radius;
  sys->enable_telemetry = config->enable_telemetry;
  sys->last_update_time = sbgl_GetTime(ctx);

  /*
   * Initialize the voxel pool with the requested capacity.
   * We utilize a dedicated internal arena for the CPU-side pool management metadata.
   */
  sbl_arena_init(&sys->poolArena, 1 * 1024 * 1024);
  sys->pool = VoxelPool_Init(&sys->poolArena, config->max_slots);

  if (!sys->pool) {
    sbl_arena_free(&sys->poolArena);
    return NULL;
  }

  /*
   * Allocate a CPU-side mirror of the AABB data. This avoids the read-write
   * hazard that occurs when mapping the previous frame's GPU buffer while
   * the GPU may still be consuming it.
   */
  sys->cpuAABB = SBL_ARENA_PUSH_ARRAY_ZERO(&sys->poolArena, sbgl_AABB, config->max_slots);
  if (!sys->cpuAABB) {
    sbl_arena_free(&sys->poolArena);
    return NULL;
  }

  /*
   * Initialize the camera tracking state to force an initial update.
   */
  sys->last_cam_chunk = (sbgl_ivec3){ -1000000, -1000000, -1000000 };

  /*
   * Load the compute shaders required for the voxel processing pipeline.
   * These shaders handle generation, shell extraction, and frustum culling.
   */
  sbgl_Shader genShader = sbgl_LoadShader(ctx, SBGL_SHADER_STAGE_COMPUTE, (const uint32_t*)voxel_gen_comp_spv, voxel_gen_comp_spv_len);
  sbgl_Shader shellShader = sbgl_LoadShader(ctx, SBGL_SHADER_STAGE_COMPUTE, (const uint32_t*)voxel_mesh_comp_spv, voxel_mesh_comp_spv_len);
  sbgl_Shader cullShader = sbgl_LoadShader(ctx, SBGL_SHADER_STAGE_COMPUTE, (const uint32_t*)voxel_cull_comp_spv, voxel_cull_comp_spv_len);

  if (genShader == SBGL_INVALID_HANDLE || shellShader == SBGL_INVALID_HANDLE || cullShader == SBGL_INVALID_HANDLE) {
    if (genShader != SBGL_INVALID_HANDLE) sbgl_DestroyShader(ctx, genShader);
    if (shellShader != SBGL_INVALID_HANDLE) sbgl_DestroyShader(ctx, shellShader);
    if (cullShader != SBGL_INVALID_HANDLE) sbgl_DestroyShader(ctx, cullShader);
    sbl_arena_free(&sys->poolArena);
    return NULL;
  }

  /*
   * Create the compute pipelines. Once created, the shader modules can be released.
   */
  sys->genPipe = sbgl_CreateComputePipeline(ctx, genShader);
  sys->shellPipe = sbgl_CreateComputePipeline(ctx, shellShader);
  sys->cullPipe = sbgl_CreateComputePipeline(ctx, cullShader);

  sbgl_DestroyShader(ctx, genShader);
  sbgl_DestroyShader(ctx, shellShader);
  sbgl_DestroyShader(ctx, cullShader);

  /*
   * Allocate the GPU-side buffers. The mask and instance buffers store the voxel
   * data, while the AABB buffer is used for GPU-driven culling.
   */
  sys->maskBuf = sbgl_CreateBuffer(ctx, SBGL_BUFFER_USAGE_STORAGE | SBGL_BUFFER_USAGE_TRANSFER_DST, config->max_slots * 65536, NULL);
  sys->instBuf = sbgl_CreateBuffer(ctx, SBGL_BUFFER_USAGE_STORAGE, config->max_slots * 65536 * sizeof(uint32_t) * 2, NULL);
  for (int i = 0; i < 2; ++i) {
    sys->aabbBuf[i] = sbgl_CreateBuffer(ctx, SBGL_BUFFER_USAGE_STORAGE, config->max_slots * sizeof(sbgl_AABB), NULL);
    void* mappedAABB = sbgl_MapBuffer(ctx, sys->aabbBuf[i]);
    if (mappedAABB) {
      memset(mappedAABB, 0, config->max_slots * sizeof(sbgl_AABB));
      sbgl_UnmapBuffer(ctx, sys->aabbBuf[i]);
    }
  }

  /*
   * Initialize the material palette with default terrain attributes.
   * This provides a consistent base for procedural generation and shading.
   */
  sys->materialPaletteBuf = sbgl_CreateBuffer(ctx, SBGL_BUFFER_USAGE_STORAGE, 64 * sizeof(sbgl_Material), NULL);
  sbgl_Material* palette = (sbgl_Material*)sbgl_MapBuffer(ctx, sys->materialPaletteBuf);
  if (palette) {
    memset(palette, 0, 64 * sizeof(sbgl_Material));

    /* Index 0: Grass (Greenish) */
    palette[0].color = sbgl_Vec4Set(0.3f, 0.6f, 0.2f, 1.0f);
    palette[0].roughness = 0.8f;
    palette[0].metalness = 0.0f;

    /* Index 1: Dirt (Brownish) */
    palette[1].color = sbgl_Vec4Set(0.4f, 0.3f, 0.2f, 1.0f);
    palette[1].roughness = 0.9f;
    palette[1].metalness = 0.0f;

    /* Index 2: Stone (Grey) */
    palette[2].color = sbgl_Vec4Set(0.5f, 0.5f, 0.5f, 1.0f);
    palette[2].roughness = 0.6f;
    palette[2].metalness = 0.0f;

    /* Index 3: Sand (Yellowish) */
    palette[3].color = sbgl_Vec4Set(0.8f, 0.7f, 0.4f, 1.0f);
    palette[3].roughness = 0.7f;
    palette[3].metalness = 0.0f;

    sbgl_UnmapBuffer(ctx, sys->materialPaletteBuf);
  }

  /*
   * Initialize control buffers.
   */
  sys->shellCountsBuf = sbgl_CreateBuffer(ctx, SBGL_BUFFER_USAGE_STORAGE | SBGL_BUFFER_USAGE_TRANSFER_DST, config->max_slots * sizeof(uint32_t), NULL);
  void* mappedShell = sbgl_MapBuffer(ctx, sys->shellCountsBuf);
  if (mappedShell) {
    memset(mappedShell, 0, config->max_slots * sizeof(uint32_t));
    sbgl_UnmapBuffer(ctx, sys->shellCountsBuf);
  }

  for (int i = 0; i < 2; ++i) {
    sys->indirectCmdBuf[i] = sbgl_CreateBuffer(ctx, SBGL_BUFFER_USAGE_STORAGE | SBGL_BUFFER_USAGE_INDIRECT, config->max_slots * sizeof(sbgl_IndirectCommand), NULL);

    void* mappedCmd = sbgl_MapBuffer(ctx, sys->indirectCmdBuf[i]);
    if (mappedCmd) {
      memset(mappedCmd, 0, config->max_slots * sizeof(sbgl_IndirectCommand));
      sbgl_UnmapBuffer(ctx, sys->indirectCmdBuf[i]);
    }
  }

  return sys;
}

sbgl_Voxel_Cull()

void sbgl_Voxel_Cull	(	sbgl_VoxelSystem *	sys,
		sbgl_Mat4	view_proj )

Performs GPU-driven frustum culling on voxel chunks. MUST be called BEFORE sbgl_BeginDrawing.

Parameters

sys	Pointer to the voxel system.
view_proj	The view-projection matrix for the current frame.

Definition at line 436 of file sbgl_voxel.c.

                                                                 {
  /*
   * Voxel culling follows a GPU-driven pipeline. A compute shader performs
   * frustum culling on all managed chunks, populating an indirect draw buffer
   * with commands for only the visible portions of the world.
   * This is done outside the main render pass to avoid validation errors.
   */
  sbgl_BeginCompute(sys->ctx);

  /* Ensure any prior host writes to mapped buffers are visible. */
  sbgl_MemoryBarrier(sys->ctx, SBGL_BARRIER_HOST_TO_COMPUTE);

  /*
   * Retrieve the double-buffered GPU handles for the current frame.
   */
  sbgl_Buffer currCmds = sys->indirectCmdBuf[sys->frame_idx];
  sbgl_Buffer currCounts = sys->shellCountsBuf;

  /*
   * Bind the culling pipeline and upload the camera and frustum metadata via
   * push constants.
   */
  sbgl_BindComputePipeline(sys->ctx, sys->cullPipe);

  sbgl_CullPushConstants cpc;
  cpc.viewProj = view_proj;
  cpc.aabbAddress = sbgl_GetBufferDeviceAddress(sys->ctx, sys->aabbBuf[sys->frame_idx]);
  cpc.commandAddress = sbgl_GetBufferDeviceAddress(sys->ctx, currCmds);
  cpc.countsAddress = sbgl_GetBufferDeviceAddress(sys->ctx, currCounts);
  cpc.cameraPos = sbgl_Vec4Set(sys->camera_pos.x, sys->camera_pos.y, sys->camera_pos.z, 1.0f);
  cpc.maxDistance = (float)(sys->chunk_radius + 1) * SBGL_VOXEL_CHUNK_SIZE * 1.5f;

  sbgl_PushConstants(sys->ctx, sizeof(cpc), &cpc);

  /*
   * Dispatch the culling kernel. Each workgroup processes a subset of the
   * total chunk slots available in the pool.
   */
  uint32_t groupCount = (sys->pool->capacity + 63) / 64;
  sbgl_DispatchCompute(sys->ctx, groupCount, 1, 1);

  /*
   * Inject memory barriers to ensure that the indirect command buffer and
   * graphics pipelines can safely consume the results of the compute culling.
   */
  sbgl_MemoryBarrier(sys->ctx, SBGL_BARRIER_COMPUTE_TO_INDIRECT);
  sbgl_MemoryBarrier(sys->ctx, SBGL_BARRIER_COMPUTE_TO_GRAPHICS);

  sbgl_EndCompute(sys->ctx);
}

sbgl_Voxel_Destroy()

void sbgl_Voxel_Destroy

(

sbgl_VoxelSystem *

sys

)

Destroys the voxel system and releases all associated resources.

Parameters

sys	Pointer to the voxel system to destroy.

Definition at line 525 of file sbgl_voxel.c.

                                               {
  /*
   * GPU resources are released back to the driver before the context
   * handle itself is discarded.
   */
  if (!sys) return;

  /*
   * Ensure the GPU is no longer accessing the resources before destruction.
   */
  sbgl_DeviceWaitIdle(sys->ctx);

  if (sys->genPipe) sbgl_DestroyComputePipeline(sys->ctx, sys->genPipe);
  if (sys->shellPipe) sbgl_DestroyComputePipeline(sys->ctx, sys->shellPipe);
  if (sys->cullPipe) sbgl_DestroyComputePipeline(sys->ctx, sys->cullPipe);

  if (sys->maskBuf) sbgl_DestroyBuffer(sys->ctx, sys->maskBuf);
  if (sys->instBuf) sbgl_DestroyBuffer(sys->ctx, sys->instBuf);
  if (sys->materialPaletteBuf) sbgl_DestroyBuffer(sys->ctx, sys->materialPaletteBuf);
  for (int i = 0; i < 2; ++i) {
    if (sys->aabbBuf[i]) sbgl_DestroyBuffer(sys->ctx, sys->aabbBuf[i]);
  }

  if (sys->shellCountsBuf) sbgl_DestroyBuffer(sys->ctx, sys->shellCountsBuf);
  for (int i = 0; i < 2; ++i) {
    if (sys->indirectCmdBuf[i]) sbgl_DestroyBuffer(sys->ctx, sys->indirectCmdBuf[i]);
  }

  sbl_arena_free(&sys->poolArena);
  /* The sys struct itself is allocated from the context arena and is freed
     when the context is shut down. */
}

sbgl_Voxel_GetAABBAddress()

uint64_t sbgl_Voxel_GetAABBAddress

(

sbgl_VoxelSystem *

sys

)

Returns the device address of the AABB buffer.

Definition at line 558 of file sbgl_voxel.c.

                                                          {
  if (!sys) return 0;
  return sbgl_GetBufferDeviceAddress(sys->ctx, sys->aabbBuf[sys->frame_idx]);
}

sbgl_Voxel_GetInstanceAddress()

uint64_t sbgl_Voxel_GetInstanceAddress

(

sbgl_VoxelSystem *

sys

)

Returns the device address of the instance buffer.

Definition at line 563 of file sbgl_voxel.c.

                                                              {
  if (!sys) return 0;
  return sbgl_GetBufferDeviceAddress(sys->ctx, sys->instBuf);
}

sbgl_Voxel_GetPaletteAddress()

uint64_t sbgl_Voxel_GetPaletteAddress

(

sbgl_VoxelSystem *

sys

)

Returns the device address of the material palette buffer.

Definition at line 568 of file sbgl_voxel.c.

                                                             {
  if (!sys) return 0;
  return sbgl_GetBufferDeviceAddress(sys->ctx, sys->materialPaletteBuf);
}

sbgl_Voxel_Render()

void sbgl_Voxel_Render

(

sbgl_VoxelSystem *

sys

)

Issues the indirect draw calls for visible voxel chunks. MUST be called BETWEEN sbgl_BeginDrawing and sbgl_EndDrawing.

Parameters

sys	Pointer to the voxel system.

Definition at line 487 of file sbgl_voxel.c.

                                              {
  /*
   * Issue the multi-draw indirect call. The GPU will execute the array of
   * commands generated by the culling phase in a single submission.
   * This must be called inside the dynamic rendering pass.
   */
  sbgl_Buffer currCmds = sys->indirectCmdBuf[sys->frame_idx];
  sbgl_DrawIndirect(sys->ctx, currCmds, 0, sys->pool->capacity);

  /*
   * Handle telemetry reporting if enabled.
   */
  if (sys->enable_telemetry && sys->telemetry_timer >= 1.0f) {
    uint32_t visibleCount = 0;
    uint32_t totalInstances = 0;
    sbgl_IndirectCommand* cmds = (sbgl_IndirectCommand*)sbgl_MapBuffer(sys->ctx, currCmds);
    if (cmds) {
      for (uint32_t i = 0; i < sys->pool->capacity; i++) {
        if (cmds[i].instanceCount > 0) {
          visibleCount++;
          totalInstances += cmds[i].instanceCount;
        }
      }
      sbgl_UnmapBuffer(sys->ctx, currCmds);
    }

    printf("FPS: %u | GPU: %.2fms | Visible: %u/%u | Instances: %u\n",
           sys->fps_frames,
           sbgl_GetTelemetry(sys->ctx).gpu_render_time,
           visibleCount,
           sys->pool->capacity,
           totalInstances);

    sys->telemetry_timer = 0.0f;
    sys->fps_frames = 0;
  }
}

sbgl_Voxel_Update()

void sbgl_Voxel_Update	(	sbgl_VoxelSystem *	sys,
		sbgl_Vec3	camera_pos )

Updates the voxel system state based on the current camera position. This function handles chunk generation requests and manages the LRU cache.

Parameters

sys	Pointer to the voxel system.
camera_pos	The current world-space position of the camera.

Definition at line 286 of file sbgl_voxel.c.

                                                                    {
  /*
   * The update phase performs camera-relative chunk management.
   * It identifies chunks that have entered the visibility radius and
   * schedules them for generation in the compute pipelines.
   * The frame index is synchronized with the engine backend to ensure
   * correct double-buffering.
   */
  sys->frame_idx = sbgl_GetFrameIndex(sys->ctx);

  double currentTime = sbgl_GetTime(sys->ctx);
  float dt = (float)(currentTime - sys->last_update_time);
  sys->last_update_time = currentTime;

  sys->telemetry_timer += dt;
  sys->fps_frames++;

  sys->camera_pos = camera_pos;
  int camCX = (int)floorf(camera_pos.x / SBGL_VOXEL_CHUNK_SIZE);
  int camCY = (int)floorf(camera_pos.y / SBGL_VOXEL_CHUNK_SIZE);
  int camCZ = (int)floorf(camera_pos.z / SBGL_VOXEL_CHUNK_SIZE);

  int radius = (int)sys->chunk_radius;

  /* Always refresh timestamps for all slots that are within the visibility radius.
     This prevents the LRU pool from prematurely recycling chunks while the camera
     is moving within a single chunk or stationary. */
  for (uint32_t i = 0; i < sys->pool->capacity; i++) {
    if (sys->pool->active[i]) {
      sbgl_ivec3 p = sys->pool->positions[i];
      if (abs(p.x - camCX) <= radius && abs(p.z - camCZ) <= radius && p.y >= (camCY - 1) && p.y <= (camCY + 2)) {
        sys->pool->last_used_frames[i] = sys->pool->current_frame;
      }
    }
  }

  /* Update logic is triggered only when the camera crosses a chunk boundary
     to minimize unnecessary CPU/GPU overhead. */
  if (camCX != sys->last_cam_chunk.x || camCY != sys->last_cam_chunk.y || camCZ != sys->last_cam_chunk.z) {
    sbgl_BeginCompute(sys->ctx);

    uint64_t maskBaseAddr = sbgl_GetBufferDeviceAddress(sys->ctx, sys->maskBuf);
    uint64_t instBaseAddr = sbgl_GetBufferDeviceAddress(sys->ctx, sys->instBuf);
    uint64_t shellCountsBaseAddr = sbgl_GetBufferDeviceAddress(sys->ctx, sys->shellCountsBuf);

    sbgl_AABB* aabbPtr = (sbgl_AABB*)sbgl_MapBuffer(sys->ctx, sys->aabbBuf[sys->frame_idx]);

    /* Copy current persistent state from the CPU-side mirror to the new frame's GPU buffer. */
    if (aabbPtr) {
      memcpy(aabbPtr, sys->cpuAABB, sys->pool->capacity * sizeof(sbgl_AABB));
    }

    /* First pass: Acquire and generate new chunks in the radius. */
    for (int dz = -radius; dz <= radius; dz++) {
      for (int dx = -radius; dx <= radius; dx++) {
        for (int dy = -1; dy <= 2; dy++) {
          sbgl_ivec3 pos = { camCX + dx, camCY + dy, camCZ + dz };

          bool is_new = false;
          int32_t slot = VoxelPool_AcquireSlot(sys->pool, pos, &is_new);

          if (is_new) {
            uint64_t maskAddr = maskBaseAddr + (slot * 65536);
            uint64_t instAddr = instBaseAddr + (slot * 65536 * 8);
            uint64_t countAddr = shellCountsBaseAddr + (slot * 4);

            /* Clear the presence mask and instance counts using GPU-side commands
               to avoid expensive host-to-device synchronization. */
            sbgl_FillBuffer(sys->ctx, sys->maskBuf, slot * 65536, 65536, 0);
            sbgl_FillBuffer(sys->ctx, sys->shellCountsBuf, slot * 4, 4, 0);

            /* Ensure the GPU-side clears are visible before the compute shaders start.
               SBGL_BARRIER_COMPUTE_TO_COMPUTE now includes TRANSFER synchronization. */
            sbgl_MemoryBarrier(sys->ctx, SBGL_BARRIER_COMPUTE_TO_COMPUTE);

            sbgl_BindComputePipeline(sys->ctx, sys->genPipe);
            sbgl_GenPushConstants gpc = {
              .maskAddress = maskAddr,
              .offset = sbgl_Vec4Set((float)pos.x * SBGL_VOXEL_CHUNK_SIZE, (float)pos.y * SBGL_VOXEL_CHUNK_SIZE, (float)pos.z * SBGL_VOXEL_CHUNK_SIZE, 0.0f),
              .seed = 42.0f
            };
            sbgl_PushConstants(sys->ctx, sizeof(gpc), &gpc);
            sbgl_DispatchCompute(sys->ctx, 4096, 1, 1);

            sbgl_MemoryBarrier(sys->ctx, SBGL_BARRIER_COMPUTE_TO_COMPUTE);

            sbgl_BindComputePipeline(sys->ctx, sys->shellPipe);
            sbgl_ShellPushConstants spc = {
              .maskAddress = maskAddr,
              .instanceAddress = instAddr,
              .counterAddress = countAddr,
              .offset = gpc.offset
            };
            sbgl_PushConstants(sys->ctx, sizeof(spc), &spc);
            sbgl_DispatchCompute(sys->ctx, 1, 64, 1);

            sbgl_AABB aabb;
            aabb.min = sbgl_Vec4Set((float)pos.x * SBGL_VOXEL_CHUNK_SIZE, (float)pos.y * SBGL_VOXEL_CHUNK_SIZE, (float)pos.z * SBGL_VOXEL_CHUNK_SIZE, 1.0f);
            aabb.max = sbgl_Vec4Set(aabb.min.x + SBGL_VOXEL_CHUNK_SIZE, aabb.min.y + SBGL_VOXEL_CHUNK_SIZE, aabb.min.z + SBGL_VOXEL_CHUNK_SIZE, 1.0f);
            if (aabbPtr) memcpy(aabbPtr + slot, &aabb, sizeof(sbgl_AABB));
            sys->cpuAABB[slot] = aabb;
          }
        }
      }
    }

    /* Second pass: Deactivate slots that have left the visibility radius.
       This prevents orphaned chunks from flickering or appearing in the wrong location. */
    for (uint32_t i = 0; i < sys->pool->capacity; i++) {
        if (sys->pool->active[i]) {
            sbgl_ivec3 p = sys->pool->positions[i];
            if (abs(p.x - camCX) > radius || abs(p.z - camCZ) > radius || p.y < (camCY - 1) || p.y > (camCY + 2)) {
                sys->pool->active[i] = 0;
                /* Reset the instance count on the GPU to immediately silence the chunk. */
                sbgl_FillBuffer(sys->ctx, sys->shellCountsBuf, i * 4, 4, 0);
            }
        }
    }

    if (aabbPtr) sbgl_UnmapBuffer(sys->ctx, sys->aabbBuf[sys->frame_idx]);

    /* Ensure that the host-side updates to the AABB buffer are visible to the GPU
       before the culling and graphics phases begin. */
    sbgl_MemoryBarrier(sys->ctx, SBGL_BARRIER_HOST_TO_COMPUTE);
    sbgl_MemoryBarrier(sys->ctx, SBGL_BARRIER_HOST_TO_GRAPHICS);

    /* Ensure that the GPU-side clears from the deactivation pass are visible
       before the culling phase starts. */
    sbgl_MemoryBarrier(sys->ctx, SBGL_BARRIER_COMPUTE_TO_COMPUTE);

    sbgl_EndCompute(sys->ctx);

    sys->last_cam_chunk = (sbgl_ivec3){ camCX, camCY, camCZ };
  } else {
    /* Even if the camera hasn't crossed a chunk boundary, we must still update the
       AABB buffer for the current frame by copying from the CPU-side mirror.
       This ensures that the culling shader always has a valid set of AABBs. */
    sbgl_AABB* aabbPtr = (sbgl_AABB*)sbgl_MapBuffer(sys->ctx, sys->aabbBuf[sys->frame_idx]);
    if (aabbPtr) {
      memcpy(aabbPtr, sys->cpuAABB, sys->pool->capacity * sizeof(sbgl_AABB));
      sbgl_UnmapBuffer(sys->ctx, sys->aabbBuf[sys->frame_idx]);
    }
    sbgl_MemoryBarrier(sys->ctx, SBGL_BARRIER_HOST_TO_COMPUTE);
    sbgl_MemoryBarrier(sys->ctx, SBGL_BARRIER_HOST_TO_GRAPHICS);
  }

  VoxelPool_UpdateFrame(sys->pool, sys->total_frames++);
}
