sbgl_types.h File Reference

#include <stdbool.h>
#include <stdint.h>
#include "sbgl_math.h"

Include dependency graph for sbgl_types.h:

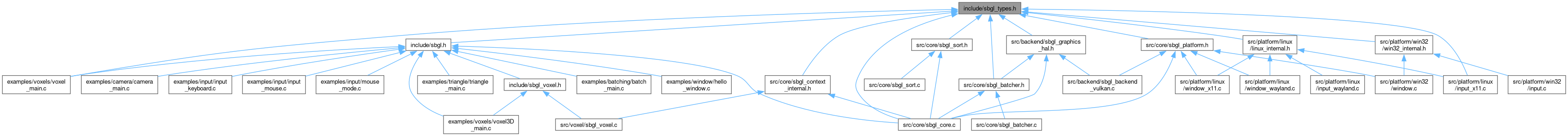

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	sbgl_InstanceData
	Per-instance data for automated batching. More...
struct	sbgl_Vertex
	Standard vertex structure for basic geometry rendering. Optimized for cache density (16 bytes). More...
struct	sbgl_DrawPacket
	Encapsulates all data required to submit a single draw call. Optimized for cache density (16 bytes). More...
struct	sbgl_IndirectCommand
	Standard Vulkan Indirect Draw command layout. More...
struct	sbgl_VertexAttribute
	Vertex attribute definition. More...
struct	sbgl_Telemetry
	Performance telemetry data for a single frame. More...
struct	sbgl_VertexLayout
	Vertex input layout definition. More...
struct	sbgl_PipelineConfig
	Configuration for creating a graphics pipeline. More...
struct	sbgl_ErrorDetail
	Detailed error information for debugging. More...
struct	sbgl_Context
	Engine context. More...
struct	sbgl_ResourceLimits
	Resource limits for engine initialization. More...
struct	sbgl_InitConfig
	Configuration for engine initialization. More...
struct	sbgl_InitResult
	Result structure for initialization. More...

Macros
#define	SBGL_INVALID_HANDLE   0
#define	SBGL_INVALID_OFFSET   ((uint32_t)-1)
#define	SBGL_PACKET_MESH_MASK   0x7FF
#define	SBGL_PACKET_MAT_MASK   0x7FF
#define	SBGL_PACKET_BLEND_MASK   0x3
#define	SBGL_PACKET_SIDED_MASK   0x1
#define	SBGL_PACKET_TAGS_MASK   0x7F
#define	SBGL_PACKET_MAT_SHIFT   11
#define	SBGL_PACKET_BLEND_SHIFT   22
#define	SBGL_PACKET_SIDED_SHIFT   24
#define	SBGL_PACKET_TAGS_SHIFT   25
#define	SBGL_VOXEL_ID_MASK   0x3FFFF
#define	SBGL_VOXEL_SCALE_MASK   0xFF
#define	SBGL_VOXEL_SCALE_SHIFT   18
#define	SBGL_VOXEL_MAT_MASK   0x3F
#define	SBGL_VOXEL_MAT_SHIFT   26
#define	SBGL_PACK_VOXEL_INSTANCE(id, scale, mat)
#define	SBGL_PACK_HEADER(mesh, mat, blend, sided, tags)
#define	SBGL_GET_MESH_ID(h)
#define	SBGL_GET_MAT_ID(h)
#define	SBGL_GET_BLEND_MODE(h)
#define	sbgl_DefaultInitConfig
	Default initialization configuration values.

Typedefs
typedef uint32_t	sbgl_Buffer
	Handle for a GPU-side buffer.
typedef uint32_t	sbgl_Shader
	Handle for a shader module.
typedef uint32_t	sbgl_Pipeline
	Handle for a graphics pipeline.
typedef uint32_t	sbgl_ComputePipeline
	Handle for a compute pipeline.
typedef uint64_t	sbgl_SortKey
	Bit-packed key used for sorting draw commands to minimize state changes.
typedef struct sbgl_RenderQueue	sbgl_RenderQueue
	Internal queue used to batch and sort draw packets before submission.
typedef struct sbgl_Context	sbgl_Context
	Engine context.
typedef struct sbgl_Window	sbgl_Window

Enumerations
enum	sbgl_BufferUsage {   SBGL_BUFFER_USAGE_VERTEX = 0x01 , SBGL_BUFFER_USAGE_INDEX = 0x02 , SBGL_BUFFER_USAGE_STORAGE = 0x04 , SBGL_BUFFER_USAGE_INDIRECT = 0x08 ,   SBGL_BUFFER_USAGE_TRANSFER_DST = 0x10 }
	Buffer usage flags. More...
enum	sbgl_ShaderStage { SBGL_SHADER_STAGE_VERTEX = 0x01 , SBGL_SHADER_STAGE_FRAGMENT = 0x02 , SBGL_SHADER_STAGE_COMPUTE = 0x04 }
	Shader stage flags. More...
enum	sbgl_BarrierType {   SBGL_BARRIER_COMPUTE_TO_COMPUTE = 0 , SBGL_BARRIER_COMPUTE_TO_INDIRECT = 1 , SBGL_BARRIER_COMPUTE_TO_GRAPHICS = 2 , SBGL_BARRIER_GRAPHICS_TO_COMPUTE = 3 ,   SBGL_BARRIER_HOST_TO_COMPUTE = 4 , SBGL_BARRIER_HOST_TO_GRAPHICS = 5 }
	Memory barrier types for compute synchronization. More...
enum	sbgl_Format {   SBGL_FORMAT_R32_SFLOAT = 0 , SBGL_FORMAT_R32G32_SFLOAT = 1 , SBGL_FORMAT_R32G32B32_SFLOAT = 2 , SBGL_FORMAT_R32G32B32A32_SFLOAT = 3 ,   SBGL_FORMAT_R16G16B16A16_SNORM = 4 , SBGL_FORMAT_R8G8B8A8_UNORM = 5 }
	Data formats for vertex attributes. More...
enum	sbgl_BlendMode { SBGL_BLEND_MODE_NONE = 0 , SBGL_BLEND_MODE_ALPHA = 1 , SBGL_BLEND_MODE_ADDITIVE = 2 }
	Blending modes for pipeline color attachments. More...
enum	sbgl_Result {   SBGL_SUCCESS = 0 , SBGL_ERROR_NULL_CONTEXT = 1 , SBGL_ERROR_INVALID_ARGUMENT = 2 , SBGL_ERROR_INITIALIZATION_FAILED = 3 ,   SBGL_ERROR_WINDOW_CREATION_FAILED = 4 , SBGL_ERROR_GRAPHICS_FAILED = 5 , SBGL_ERROR_OUT_OF_MEMORY = 6 , SBGL_ERROR_DEVICE_BUSY = 7 ,   SBGL_ERROR_INVALID_HANDLE = 8 , SBGL_ERROR_SWAPCHAIN_FAILED = 9 , SBGL_ERROR_SHADER_FAILED = 10 , SBGL_ERROR_PIPELINE_FAILED = 11 ,   SBGL_ERROR_PLATFORM_FAILED = 12 }
	Result codes for engine operations. More...
enum	sbgl_platform_Result { SBGL_PLATFORM_SUCCESS = 0 , SBGL_PLATFORM_ERROR_WINDOW_FAILED = 1 , SBGL_PLATFORM_ERROR_NO_DISPLAY = 2 , SBGL_PLATFORM_ERROR_INIT_FAILED = 3 }
	Result codes for platform layer operations. More...
enum	sbgl_BackendType { SBGL_BACKEND_VULKAN = 0 }
	Backend types supported by the engine. More...

Macro Definition Documentation

sbgl_DefaultInitConfig

#define sbgl_DefaultInitConfig

Value:

  ((sbgl_InitConfig){ \
  .windowWidth = 800, \
  .windowHeight = 600, \
  .windowTitle = "SBgl Application", \
  .limits = { .maxBuffers = 1024, .maxShaders = 256, .maxPipelines = 256 }, \
  .enableValidation = true \
})

Default initialization configuration values.

Use this as a starting point for custom configurations:

sbgl_InitConfig config = sbgl_DefaultInitConfig;
config.windowWidth = 1920;
config.windowHeight = 1080;
config.limits.maxBuffers = 4096;
sbgl_InitResult res = sbgl_InitWithConfig(&config);

Definition at line 328 of file sbgl_types.h.

#define sbgl_DefaultInitConfig ((sbgl_InitConfig){ \
  .windowWidth = 800, \
  .windowHeight = 600, \
  .windowTitle = "SBgl Application", \
  .limits = { .maxBuffers = 1024, .maxShaders = 256, .maxPipelines = 256 }, \
  .enableValidation = true \
})

SBGL_GET_BLEND_MODE

#define SBGL_GET_BLEND_MODE

(

h

)

Value:

(((h) >> SBGL_PACKET_BLEND_SHIFT) & SBGL_PACKET_BLEND_MASK)

Definition at line 91 of file sbgl_types.h.

SBGL_GET_MAT_ID

#define SBGL_GET_MAT_ID

(

h

)

Value:

(((h) >> SBGL_PACKET_MAT_SHIFT) & SBGL_PACKET_MAT_MASK)

Definition at line 90 of file sbgl_types.h.

SBGL_GET_MESH_ID

#define SBGL_GET_MESH_ID

(

h

)

Value:

((h) & SBGL_PACKET_MESH_MASK)

Definition at line 89 of file sbgl_types.h.

SBGL_INVALID_HANDLE

#define SBGL_INVALID_HANDLE   0

Definition at line 8 of file sbgl_types.h.

SBGL_INVALID_OFFSET

#define SBGL_INVALID_OFFSET   ((uint32_t)-1)

Definition at line 9 of file sbgl_types.h.

SBGL_PACK_HEADER

#define SBGL_PACK_HEADER	(		mesh,
			mat,
			blend,
			sided,
			tags )

Value:

  (((mesh) & SBGL_PACKET_MESH_MASK) |                                                            \
   (((mat) & SBGL_PACKET_MAT_MASK) << SBGL_PACKET_MAT_SHIFT) |                                   \
   (((blend) & SBGL_PACKET_BLEND_MASK) << SBGL_PACKET_BLEND_SHIFT) |                             \
   (((sided) & SBGL_PACKET_SIDED_MASK) << SBGL_PACKET_SIDED_SHIFT) |                             \
   (((tags) & SBGL_PACKET_TAGS_MASK) << SBGL_PACKET_TAGS_SHIFT))

Definition at line 82 of file sbgl_types.h.

#define SBGL_PACK_HEADER(mesh, mat, blend, sided, tags)                                            \
  (((mesh) & SBGL_PACKET_MESH_MASK) |                                                            \
   (((mat) & SBGL_PACKET_MAT_MASK) << SBGL_PACKET_MAT_SHIFT) |                                   \
   (((blend) & SBGL_PACKET_BLEND_MASK) << SBGL_PACKET_BLEND_SHIFT) |                             \
   (((sided) & SBGL_PACKET_SIDED_MASK) << SBGL_PACKET_SIDED_SHIFT) |                             \
   (((tags) & SBGL_PACKET_TAGS_MASK) << SBGL_PACKET_TAGS_SHIFT))

SBGL_PACK_VOXEL_INSTANCE

#define SBGL_PACK_VOXEL_INSTANCE	(		id,
			scale,
			mat )

Value:

  (((id) & SBGL_VOXEL_ID_MASK) | (((scale) & SBGL_VOXEL_SCALE_MASK) << SBGL_VOXEL_SCALE_SHIFT) | (((mat) & SBGL_VOXEL_MAT_MASK) << SBGL_VOXEL_MAT_SHIFT))

Definition at line 79 of file sbgl_types.h.

#define SBGL_PACK_VOXEL_INSTANCE(id, scale, mat) \
  (((id) & SBGL_VOXEL_ID_MASK) | (((scale) & SBGL_VOXEL_SCALE_MASK) << SBGL_VOXEL_SCALE_SHIFT) | (((mat) & SBGL_VOXEL_MAT_MASK) << SBGL_VOXEL_MAT_SHIFT))

SBGL_PACKET_BLEND_MASK

#define SBGL_PACKET_BLEND_MASK   0x3

Definition at line 61 of file sbgl_types.h.

SBGL_PACKET_BLEND_SHIFT

#define SBGL_PACKET_BLEND_SHIFT   22

Definition at line 66 of file sbgl_types.h.

SBGL_PACKET_MAT_MASK

#define SBGL_PACKET_MAT_MASK   0x7FF

Definition at line 60 of file sbgl_types.h.

SBGL_PACKET_MAT_SHIFT

#define SBGL_PACKET_MAT_SHIFT   11

Definition at line 65 of file sbgl_types.h.

SBGL_PACKET_MESH_MASK

#define SBGL_PACKET_MESH_MASK   0x7FF

Definition at line 59 of file sbgl_types.h.

SBGL_PACKET_SIDED_MASK

#define SBGL_PACKET_SIDED_MASK   0x1

Definition at line 62 of file sbgl_types.h.

SBGL_PACKET_SIDED_SHIFT

#define SBGL_PACKET_SIDED_SHIFT   24

Definition at line 67 of file sbgl_types.h.

SBGL_PACKET_TAGS_MASK

#define SBGL_PACKET_TAGS_MASK   0x7F

Definition at line 63 of file sbgl_types.h.

SBGL_PACKET_TAGS_SHIFT

#define SBGL_PACKET_TAGS_SHIFT   25

Definition at line 68 of file sbgl_types.h.

SBGL_VOXEL_ID_MASK

#define SBGL_VOXEL_ID_MASK   0x3FFFF

Definition at line 73 of file sbgl_types.h.

SBGL_VOXEL_MAT_MASK

#define SBGL_VOXEL_MAT_MASK   0x3F

Definition at line 76 of file sbgl_types.h.

SBGL_VOXEL_MAT_SHIFT

#define SBGL_VOXEL_MAT_SHIFT   26

Definition at line 77 of file sbgl_types.h.

SBGL_VOXEL_SCALE_MASK

#define SBGL_VOXEL_SCALE_MASK   0xFF

Definition at line 74 of file sbgl_types.h.

SBGL_VOXEL_SCALE_SHIFT

#define SBGL_VOXEL_SCALE_SHIFT   18

Definition at line 75 of file sbgl_types.h.

Typedef Documentation

sbgl_Buffer

typedef uint32_t sbgl_Buffer

Handle for a GPU-side buffer.

Definition at line 37 of file sbgl_types.h.

sbgl_ComputePipeline

typedef uint32_t sbgl_ComputePipeline

Handle for a compute pipeline.

Definition at line 52 of file sbgl_types.h.

sbgl_Context

typedef struct sbgl_Context sbgl_Context

Engine context.

The context serves as the handle for all SBgl operations. It utilizes an opaque pointer pattern to encapsulate internal engine state, ensuring that OS-specific handles and internal memory management are hidden from the public API.

sbgl_Pipeline

typedef uint32_t sbgl_Pipeline

Handle for a graphics pipeline.

Definition at line 47 of file sbgl_types.h.

sbgl_RenderQueue

typedef struct sbgl_RenderQueue sbgl_RenderQueue

Internal queue used to batch and sort draw packets before submission.

Definition at line 106 of file sbgl_types.h.

sbgl_Shader

typedef uint32_t sbgl_Shader

Handle for a shader module.

Definition at line 42 of file sbgl_types.h.

sbgl_SortKey

typedef uint64_t sbgl_SortKey

Bit-packed key used for sorting draw commands to minimize state changes.

Definition at line 57 of file sbgl_types.h.

sbgl_Window

typedef struct sbgl_Window sbgl_Window

Definition at line 344 of file sbgl_types.h.

Enumeration Type Documentation

sbgl_BackendType

enum sbgl_BackendType

Backend types supported by the engine.

Enumerator
SBGL_BACKEND_VULKAN

Definition at line 243 of file sbgl_types.h.

             {
  SBGL_BACKEND_VULKAN = 0,
} sbgl_BackendType;

sbgl_BarrierType

enum sbgl_BarrierType

Memory barrier types for compute synchronization.

Enumerator
SBGL_BARRIER_COMPUTE_TO_COMPUTE
SBGL_BARRIER_COMPUTE_TO_INDIRECT
SBGL_BARRIER_COMPUTE_TO_GRAPHICS
SBGL_BARRIER_GRAPHICS_TO_COMPUTE
SBGL_BARRIER_HOST_TO_COMPUTE
SBGL_BARRIER_HOST_TO_GRAPHICS

Definition at line 142 of file sbgl_types.h.

             {
  SBGL_BARRIER_COMPUTE_TO_COMPUTE = 0,
  SBGL_BARRIER_COMPUTE_TO_INDIRECT = 1,
  SBGL_BARRIER_COMPUTE_TO_GRAPHICS = 2,
  SBGL_BARRIER_GRAPHICS_TO_COMPUTE = 3,
  SBGL_BARRIER_HOST_TO_COMPUTE = 4,
  SBGL_BARRIER_HOST_TO_GRAPHICS = 5,
} sbgl_BarrierType;

sbgl_BlendMode

enum sbgl_BlendMode

Blending modes for pipeline color attachments.

Enumerator
SBGL_BLEND_MODE_NONE
SBGL_BLEND_MODE_ALPHA
SBGL_BLEND_MODE_ADDITIVE

Definition at line 195 of file sbgl_types.h.

             {
  SBGL_BLEND_MODE_NONE = 0,
  SBGL_BLEND_MODE_ALPHA = 1,
  SBGL_BLEND_MODE_ADDITIVE = 2,
} sbgl_BlendMode;

sbgl_BufferUsage

enum sbgl_BufferUsage

Buffer usage flags.

Enumerator
SBGL_BUFFER_USAGE_VERTEX
SBGL_BUFFER_USAGE_INDEX
SBGL_BUFFER_USAGE_STORAGE
SBGL_BUFFER_USAGE_INDIRECT
SBGL_BUFFER_USAGE_TRANSFER_DST

Definition at line 122 of file sbgl_types.h.

             {
  SBGL_BUFFER_USAGE_VERTEX = 0x01,
  SBGL_BUFFER_USAGE_INDEX = 0x02,
  SBGL_BUFFER_USAGE_STORAGE = 0x04,
  SBGL_BUFFER_USAGE_INDIRECT = 0x08,
  SBGL_BUFFER_USAGE_TRANSFER_DST = 0x10,
} sbgl_BufferUsage;

sbgl_Format

enum sbgl_Format

Data formats for vertex attributes.

Enumerator
SBGL_FORMAT_R32_SFLOAT
SBGL_FORMAT_R32G32_SFLOAT
SBGL_FORMAT_R32G32B32_SFLOAT
SBGL_FORMAT_R32G32B32A32_SFLOAT
SBGL_FORMAT_R16G16B16A16_SNORM
SBGL_FORMAT_R8G8B8A8_UNORM

Definition at line 154 of file sbgl_types.h.

             {
  SBGL_FORMAT_R32_SFLOAT = 0,
  SBGL_FORMAT_R32G32_SFLOAT = 1,
  SBGL_FORMAT_R32G32B32_SFLOAT = 2,
  SBGL_FORMAT_R32G32B32A32_SFLOAT = 3,
  SBGL_FORMAT_R16G16B16A16_SNORM = 4,
  SBGL_FORMAT_R8G8B8A8_UNORM = 5,
} sbgl_Format;

sbgl_platform_Result

enum sbgl_platform_Result

Result codes for platform layer operations.

Enumerator
SBGL_PLATFORM_SUCCESS
SBGL_PLATFORM_ERROR_WINDOW_FAILED
SBGL_PLATFORM_ERROR_NO_DISPLAY
SBGL_PLATFORM_ERROR_INIT_FAILED

Definition at line 233 of file sbgl_types.h.

             {
  SBGL_PLATFORM_SUCCESS = 0,
  SBGL_PLATFORM_ERROR_WINDOW_FAILED = 1,
  SBGL_PLATFORM_ERROR_NO_DISPLAY = 2,
  SBGL_PLATFORM_ERROR_INIT_FAILED = 3,
} sbgl_platform_Result;

sbgl_Result

enum sbgl_Result

Result codes for engine operations.

Enumerator
SBGL_SUCCESS
SBGL_ERROR_NULL_CONTEXT
SBGL_ERROR_INVALID_ARGUMENT
SBGL_ERROR_INITIALIZATION_FAILED
SBGL_ERROR_WINDOW_CREATION_FAILED
SBGL_ERROR_GRAPHICS_FAILED
SBGL_ERROR_OUT_OF_MEMORY
SBGL_ERROR_DEVICE_BUSY
SBGL_ERROR_INVALID_HANDLE
SBGL_ERROR_SWAPCHAIN_FAILED
SBGL_ERROR_SHADER_FAILED
SBGL_ERROR_PIPELINE_FAILED
SBGL_ERROR_PLATFORM_FAILED

Definition at line 214 of file sbgl_types.h.

             {
  SBGL_SUCCESS = 0,
  SBGL_ERROR_NULL_CONTEXT = 1,
  SBGL_ERROR_INVALID_ARGUMENT = 2,
  SBGL_ERROR_INITIALIZATION_FAILED = 3,
  SBGL_ERROR_WINDOW_CREATION_FAILED = 4,
  SBGL_ERROR_GRAPHICS_FAILED = 5,
  SBGL_ERROR_OUT_OF_MEMORY = 6,
  SBGL_ERROR_DEVICE_BUSY = 7,
  SBGL_ERROR_INVALID_HANDLE = 8,
  SBGL_ERROR_SWAPCHAIN_FAILED = 9,
  SBGL_ERROR_SHADER_FAILED = 10,
  SBGL_ERROR_PIPELINE_FAILED = 11,
  SBGL_ERROR_PLATFORM_FAILED = 12,
} sbgl_Result;

sbgl_ShaderStage

enum sbgl_ShaderStage

Shader stage flags.

Enumerator
SBGL_SHADER_STAGE_VERTEX
SBGL_SHADER_STAGE_FRAGMENT
SBGL_SHADER_STAGE_COMPUTE

Definition at line 133 of file sbgl_types.h.

             {
  SBGL_SHADER_STAGE_VERTEX = 0x01,
  SBGL_SHADER_STAGE_FRAGMENT = 0x02,
  SBGL_SHADER_STAGE_COMPUTE = 0x04,
} sbgl_ShaderStage;
