sbgl_backend_vulkan.c File Reference

#include "core/sbgl_platform.h"
#include "core/sbl_arena.h"
#include "core/sbgl_internal_log.h"
#include "sbgl_graphics_hal.h"
#include <volk.h>
#include <stdio.h>
#include <string.h>

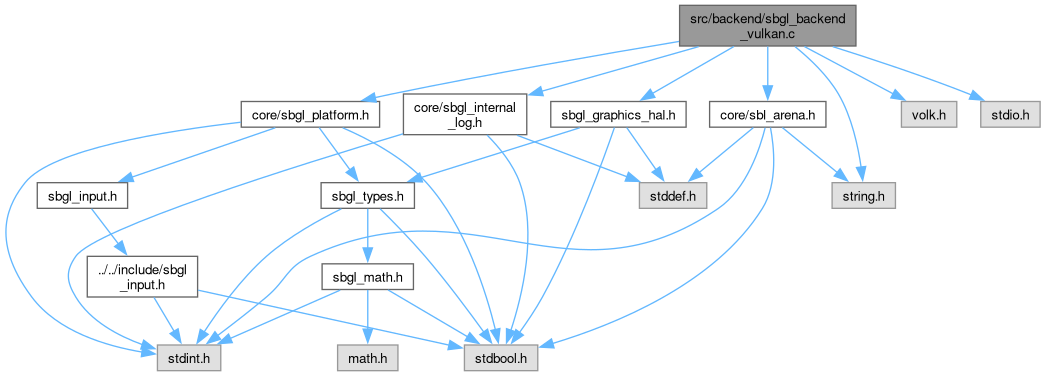

Include dependency graph for sbgl_backend_vulkan.c:

Go to the source code of this file.

Data Structures
struct	SBGL_VulkanBuffer
struct	SBGL_VulkanShader
struct	SBGL_VulkanPipeline
struct	SBGL_VulkanComputePipeline
struct	sbgl_GfxMemoryRange
struct	sbgl_GfxStaticHeap
struct	sbgl_GfxDynamicHeap
struct	sbgl_GfxManagedHeap
struct	sbgl_GfxContext

Macros
#define	VK_NO_PROTOTYPES
#define	SBGL_MAX_FRAMES_IN_FLIGHT   2
#define	SBGL_MAX_SWAPCHAIN_IMAGES   8
#define	SBGL_TRANSIENT_BUFFER_SIZE   (16 * 1024 * 1024)
#define	SBGL_STATIC_HEAP_SIZE   (128 * 1024 * 1024)
#define	SBGL_DYNAMIC_HEAP_SIZE   (128 * 1024 * 1024)
#define	SBGL_MANAGED_HEAP_SIZE   (512 * 1024 * 1024)
#define	SBGL_VK_PUSH_CONSTANT_SIZE   128

Enumerations
enum	SBGL_HeapType { SBGL_HEAP_TYPE_STATIC , SBGL_HEAP_TYPE_DYNAMIC , SBGL_HEAP_TYPE_MANAGED }

Functions
static void	cleanup_swapchain (sbgl_GfxContext *ctx)
static bool	create_swapchain (sbgl_GfxContext *ctx, sbgl_Window *window)
static void	recreate_swapchain (sbgl_GfxContext *ctx)
static VKAPI_ATTR VkBool32 VKAPI_CALL	sbgl_vk_debug_callback (VkDebugUtilsMessageSeverityFlagBitsEXT messageSeverity, VkDebugUtilsMessageTypeFlagsEXT messageType, const VkDebugUtilsMessengerCallbackDataEXT *pCallbackData, void *pUserData)
static void	sbgl_setup_debug_utils (sbgl_GfxContext *ctx)
static VkFormat	sbgl_to_vk_format (sbgl_Format format)
static uint32_t	find_memory_type (sbgl_GfxContext *ctx, uint32_t typeFilter, VkMemoryPropertyFlags properties)
static uint32_t	static_heap_alloc (sbgl_GfxContext *ctx, size_t size)
static uint32_t	dynamic_heap_alloc (sbgl_GfxContext *ctx, size_t size)
static uint32_t	managed_heap_alloc (sbgl_GfxContext *ctx, size_t size)
static void	managed_heap_free (sbgl_GfxContext *ctx, uint32_t offset)
static bool	create_heaps (sbgl_GfxContext *ctx)
static bool	create_instance (sbgl_GfxContext *ctx, bool enableValidation)
static bool	create_surface (sbgl_GfxContext *ctx, sbgl_Window *window)
static bool	select_physical_device (sbgl_GfxContext *ctx)
static bool	create_logical_device (sbgl_GfxContext *ctx)
static bool	find_depth_format (sbgl_GfxContext *ctx)
static bool	create_depth_resources (sbgl_GfxContext *ctx)
static bool	create_sync_and_command (sbgl_GfxContext *ctx)
static bool	create_telemetry_resources (sbgl_GfxContext *ctx)
static bool	create_transient_resources (sbgl_GfxContext *ctx)
sbgl_GfxContext *	sbgl_gfx_Init (sbgl_Window *window, struct SblArena *arena, const sbgl_ResourceLimits *limits, bool enableValidation)
	Initializes the graphics backend with configurable resource limits.
void	sbgl_gfx_Shutdown (sbgl_GfxContext *ctx)
bool	sbgl_gfx_BeginFrame (sbgl_GfxContext *ctx)
	Starts a new frame, acquiring an image and starting the command buffer.
void	sbgl_gfx_BeginRenderPass (sbgl_GfxContext *ctx, float r, float g, float b, float a)
	Starts a graphics rendering pass.
void	sbgl_gfx_EndRenderPass (sbgl_GfxContext *ctx)
	Ends the current graphics rendering pass.
void	sbgl_gfx_EndFrame (sbgl_GfxContext *ctx)
	Submits the current frame's commands and presents the image.
void	sbgl_gfx_DeviceWaitIdle (sbgl_GfxContext *ctx)
sbgl_Buffer	sbgl_gfx_CreateBuffer (sbgl_GfxContext *ctx, sbgl_BufferUsage usage, size_t size, const void *data)
void	sbgl_gfx_DestroyBuffer (sbgl_GfxContext *ctx, sbgl_Buffer handle)
void	sbgl_gfx_FillBuffer (sbgl_GfxContext *ctx, sbgl_Buffer handle, size_t offset, size_t size, uint32_t value)
	Performs a hardware-accelerated buffer fill.
uint32_t	sbgl_gfx_GetFrameIndex (sbgl_GfxContext *ctx)
	Retrieves the current backend frame index.
void *	sbgl_gfx_MapBuffer (sbgl_GfxContext *ctx, sbgl_Buffer handle)
void	sbgl_gfx_UnmapBuffer (sbgl_GfxContext *ctx, sbgl_Buffer handle)
void	sbgl_gfx_DestroyBufferDeferred (sbgl_GfxContext *ctx, sbgl_Buffer handle)
	Marks a buffer for destruction after current frames complete.
uint64_t	sbgl_gfx_GetBufferDeviceAddress (sbgl_GfxContext *ctx, sbgl_Buffer handle)
	Retrieves the 64-bit GPU virtual address for a buffer.
sbgl_Shader	sbgl_gfx_LoadShader (sbgl_GfxContext *ctx, sbgl_ShaderStage stage, const uint32_t *bytecode, size_t size)
void	sbgl_gfx_DestroyShader (sbgl_GfxContext *ctx, sbgl_Shader handle)
sbgl_Pipeline	sbgl_gfx_CreatePipeline (sbgl_GfxContext *ctx, const sbgl_PipelineConfig *config)
void	sbgl_gfx_DestroyPipeline (sbgl_GfxContext *ctx, sbgl_Pipeline handle)
sbgl_ComputePipeline	sbgl_gfx_CreateComputePipeline (sbgl_GfxContext *ctx, sbgl_Shader handle)
void	sbgl_gfx_DestroyComputePipeline (sbgl_GfxContext *ctx, sbgl_ComputePipeline handle)
void	sbgl_gfx_BindComputePipeline (sbgl_GfxContext *ctx, sbgl_ComputePipeline handle)
void	sbgl_gfx_DispatchCompute (sbgl_GfxContext *ctx, uint32_t x, uint32_t y, uint32_t z)
void	sbgl_gfx_MemoryBarrier (sbgl_GfxContext *ctx, sbgl_BarrierType type)
void	sbgl_gfx_BindPipeline (sbgl_GfxContext *ctx, sbgl_Pipeline handle)
void	sbgl_gfx_BindBuffer (sbgl_GfxContext *ctx, sbgl_Buffer handle, sbgl_BufferUsage usage)
void	sbgl_gfx_Draw (sbgl_GfxContext *ctx, uint32_t vertexCount, uint32_t firstVertex, uint32_t instanceCount)
void	sbgl_gfx_DrawIndexed (sbgl_GfxContext *ctx, uint32_t indexCount, uint32_t firstIndex, int32_t vertexOffset, uint32_t instanceCount)
void	sbgl_gfx_DrawIndirect (sbgl_GfxContext *ctx, sbgl_Buffer handle, size_t offset, uint32_t drawCount)
	Submits a batch of draw calls stored in a GPU buffer.
sbgl_GfxTransientAllocation	sbgl_gfx_AllocateTransient (sbgl_GfxContext *ctx, size_t size, uint32_t alignment)
	Allocates a slice of GPU-visible memory for transient per-frame data.
void	sbgl_gfx_PushConstants (sbgl_GfxContext *ctx, size_t size, const void *data)
float	sbgl_gfx_GetGpuTime (sbgl_GfxContext *ctx)
	Retrieves the elapsed GPU time for the previous frame in milliseconds.
int32_t	sbgl_gfx_GetLastVkResult (sbgl_GfxContext *ctx)
	Retrieves the last VkResult from the backend for error inspection.

Variables
static const sbgl_ResourceLimits	sbgl_DefaultResourceLimits

Macro Definition Documentation

SBGL_DYNAMIC_HEAP_SIZE

#define SBGL_DYNAMIC_HEAP_SIZE   (128 * 1024 * 1024)

Definition at line 22 of file sbgl_backend_vulkan.c.

SBGL_MANAGED_HEAP_SIZE

#define SBGL_MANAGED_HEAP_SIZE   (512 * 1024 * 1024)

Definition at line 23 of file sbgl_backend_vulkan.c.

SBGL_MAX_FRAMES_IN_FLIGHT

#define SBGL_MAX_FRAMES_IN_FLIGHT   2

Definition at line 18 of file sbgl_backend_vulkan.c.

SBGL_MAX_SWAPCHAIN_IMAGES

#define SBGL_MAX_SWAPCHAIN_IMAGES   8

Definition at line 19 of file sbgl_backend_vulkan.c.

SBGL_STATIC_HEAP_SIZE

#define SBGL_STATIC_HEAP_SIZE   (128 * 1024 * 1024)

Definition at line 21 of file sbgl_backend_vulkan.c.

SBGL_TRANSIENT_BUFFER_SIZE

#define SBGL_TRANSIENT_BUFFER_SIZE   (16 * 1024 * 1024)

Definition at line 20 of file sbgl_backend_vulkan.c.

SBGL_VK_PUSH_CONSTANT_SIZE

#define SBGL_VK_PUSH_CONSTANT_SIZE   128

Definition at line 197 of file sbgl_backend_vulkan.c.

VK_NO_PROTOTYPES

#define VK_NO_PROTOTYPES

Definition at line 6 of file sbgl_backend_vulkan.c.

Enumeration Type Documentation

SBGL_HeapType

enum SBGL_HeapType

Enumerator
SBGL_HEAP_TYPE_STATIC
SBGL_HEAP_TYPE_DYNAMIC
SBGL_HEAP_TYPE_MANAGED

Definition at line 32 of file sbgl_backend_vulkan.c.

             {
  SBGL_HEAP_TYPE_STATIC,
  SBGL_HEAP_TYPE_DYNAMIC,
  SBGL_HEAP_TYPE_MANAGED
} SBGL_HeapType;

Function Documentation

cleanup_swapchain()

static void cleanup_swapchain ( sbgl_GfxContext * ctx )

static

Definition at line 169 of file sbgl_backend_vulkan.c.

                                                    {
  ctx->vk.vkDestroyImageView(ctx->device, ctx->depthImageView, NULL);
  ctx->vk.vkDestroyImage(ctx->device, ctx->depthImage, NULL);
  ctx->vk.vkFreeMemory(ctx->device, ctx->depthMemory, NULL);

  for (uint32_t i = 0; i < ctx->imageCount; i++) {
    ctx->vk.vkDestroyImageView(ctx->device, ctx->imageViews[i], NULL);
  }
  ctx->vk.vkDestroySwapchainKHR(ctx->device, ctx->swapchain, NULL);
  sbl_arena_rewind(ctx->arena, ctx->swapchainMark);
}

create_depth_resources()

static bool create_depth_resources ( sbgl_GfxContext * ctx )

static

Definition at line 687 of file sbgl_backend_vulkan.c.

                                                         {
  if (!find_depth_format(ctx))
    return false;

  VkImageCreateInfo imageInfo = {
    .sType = VK_STRUCTURE_TYPE_IMAGE_CREATE_INFO,
    .imageType = VK_IMAGE_TYPE_2D,
    .extent = { .width = ctx->swapchainExtent.width,
          .height = ctx->swapchainExtent.height,
          .depth = 1 },
    .mipLevels = 1,
    .arrayLayers = 1,
    .format = ctx->depthFormat,
    .tiling = VK_IMAGE_TILING_OPTIMAL,
    .initialLayout = VK_IMAGE_LAYOUT_UNDEFINED,
    .usage = VK_IMAGE_USAGE_DEPTH_STENCIL_ATTACHMENT_BIT,
    .samples = VK_SAMPLE_COUNT_1_BIT,
    .sharingMode = VK_SHARING_MODE_EXCLUSIVE,
  };

  if (ctx->vk.vkCreateImage(ctx->device, &imageInfo, NULL, &ctx->depthImage) != VK_SUCCESS)
    return false;

  VkMemoryRequirements memRequirements;
  ctx->vk.vkGetImageMemoryRequirements(ctx->device, ctx->depthImage, &memRequirements);

  VkMemoryAllocateInfo allocInfo = {
    .sType = VK_STRUCTURE_TYPE_MEMORY_ALLOCATE_INFO,
    .allocationSize = memRequirements.size,
    .memoryTypeIndex = find_memory_type(
      ctx,
      memRequirements.memoryTypeBits,
      VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT
    ),
  };

  if (ctx->vk.vkAllocateMemory(ctx->device, &allocInfo, NULL, &ctx->depthMemory) != VK_SUCCESS)
    return false;

  ctx->vk.vkBindImageMemory(ctx->device, ctx->depthImage, ctx->depthMemory, 0);

  VkImageViewCreateInfo viewInfo = {
    .sType = VK_STRUCTURE_TYPE_IMAGE_VIEW_CREATE_INFO,
    .image = ctx->depthImage,
    .viewType = VK_IMAGE_VIEW_TYPE_2D,
    .format = ctx->depthFormat,
    .subresourceRange = { .aspectMask = VK_IMAGE_ASPECT_DEPTH_BIT,
                .levelCount = 1,
                .layerCount = 1 },
  };

  if (ctx->vk.vkCreateImageView(ctx->device, &viewInfo, NULL, &ctx->depthImageView) != VK_SUCCESS)
    return false;

  return true;
}

create_heaps()

static bool create_heaps ( sbgl_GfxContext * ctx )

static

Definition at line 401 of file sbgl_backend_vulkan.c.

                                               {
  /* The system initializes three distinct memory heaps to support diverse resource
     allocation patterns: Static for long-lived assets, Dynamic for per-frame data,
     and Managed for flexible sub-allocations. All heaps are host-visible and
     persistently mapped for zero-copy access. */

  uint32_t memoryTypeIndex = find_memory_type(
    ctx,
    0xFFFFFFFF,
    VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT | VK_MEMORY_PROPERTY_HOST_COHERENT_BIT
  );

  if (memoryTypeIndex == SBGL_INVALID_OFFSET) {
    return false;
  }

  VkMemoryAllocateFlagsInfo flagsInfo = {
    .sType = VK_STRUCTURE_TYPE_MEMORY_ALLOCATE_FLAGS_INFO,
    .flags = VK_MEMORY_ALLOCATE_DEVICE_ADDRESS_BIT,
  };

  VkMemoryAllocateInfo allocInfo = {
    .sType = VK_STRUCTURE_TYPE_MEMORY_ALLOCATE_INFO,
    .pNext = &flagsInfo,
    .memoryTypeIndex = memoryTypeIndex,
  };

  // Static Heap
  ctx->staticHeap.size = SBGL_STATIC_HEAP_SIZE;
  allocInfo.allocationSize = ctx->staticHeap.size;
  if (ctx->vk.vkAllocateMemory(ctx->device, &allocInfo, NULL, &ctx->staticHeap.memory) != VK_SUCCESS) {
    return false;
  }
  ctx->vk.vkMapMemory(ctx->device, ctx->staticHeap.memory, 0, ctx->staticHeap.size, 0, &ctx->staticHeap.mapped);
  ctx->staticHeap.offset = 0;

  // Dynamic Heap (split into two 64MB buffers for double buffering)
  ctx->dynamicHeap.size = SBGL_DYNAMIC_HEAP_SIZE;
  allocInfo.allocationSize = ctx->dynamicHeap.size;
  if (ctx->vk.vkAllocateMemory(ctx->device, &allocInfo, NULL, &ctx->dynamicHeap.memory) != VK_SUCCESS) {
    return false;
  }
  void* dynamicBase;
  ctx->vk.vkMapMemory(ctx->device, ctx->dynamicHeap.memory, 0, ctx->dynamicHeap.size, 0, &dynamicBase);
  ctx->dynamicHeap.mapped[0] = dynamicBase;
  ctx->dynamicHeap.mapped[1] = (char*)dynamicBase + (SBGL_DYNAMIC_HEAP_SIZE / 2);
  ctx->dynamicHeap.offset[0] = 0;
  ctx->dynamicHeap.offset[1] = 0;

  // Managed Heap
  ctx->managedHeap.size = SBGL_MANAGED_HEAP_SIZE;
  allocInfo.allocationSize = ctx->managedHeap.size;
  if (ctx->vk.vkAllocateMemory(ctx->device, &allocInfo, NULL, &ctx->managedHeap.memory) != VK_SUCCESS) {
    return false;
  }
  ctx->vk.vkMapMemory(ctx->device, ctx->managedHeap.memory, 0, ctx->managedHeap.size, 0, &ctx->managedHeap.mapped);
  ctx->managedHeap.rangeCount = 1;
  ctx->managedHeap.ranges[0] = (sbgl_GfxMemoryRange){ .offset = 0, .size = SBGL_MANAGED_HEAP_SIZE, .handle_index = 0 };

  return true;
}

create_instance()

static bool create_instance ( sbgl_GfxContext * ctx, bool enableValidation )

static

Definition at line 463 of file sbgl_backend_vulkan.c.

                                                                         {
  VkApplicationInfo appInfo = {
    .sType = VK_STRUCTURE_TYPE_APPLICATION_INFO,
    .pApplicationName = "SBgl Application",
    .applicationVersion = VK_MAKE_VERSION(1, 0, 0),
    .pEngineName = "SBgl",
    .engineVersion = VK_MAKE_VERSION(1, 0, 0),
    .apiVersion = VK_API_VERSION_1_3,
  };

  const char* extensions[] = {
    VK_KHR_SURFACE_EXTENSION_NAME,
#ifdef SBGL_PLATFORM_WAYLAND
    VK_KHR_WAYLAND_SURFACE_EXTENSION_NAME,
#elif defined(SBGL_PLATFORM_X11)
    VK_KHR_XLIB_SURFACE_EXTENSION_NAME,
#elif defined(_WIN32)
    VK_KHR_WIN32_SURFACE_EXTENSION_NAME,
#endif
  };

  VkInstanceCreateInfo createInfo = {
    .sType = VK_STRUCTURE_TYPE_INSTANCE_CREATE_INFO,
    .pApplicationInfo = &appInfo,
    .enabledExtensionCount = sizeof(extensions) / sizeof(extensions[0]),
    .ppEnabledExtensionNames = extensions,
  };

  const char* layers[] = { "VK_LAYER_KHRONOS_validation" };

  if (enableValidation) {
    createInfo.enabledLayerCount = 1;
    createInfo.ppEnabledLayerNames = layers;
  }

  VkResult result = vkCreateInstance(&createInfo, NULL, &ctx->instance);
  ctx->backendResult = result;

  if (result != VK_SUCCESS) {
    return false;
  }

  volkLoadInstance(ctx->instance);

  if (enableValidation) {
    sbgl_setup_debug_utils(ctx);
  }

  return true;
}

create_logical_device()

static bool create_logical_device ( sbgl_GfxContext * ctx )

static

Definition at line 586 of file sbgl_backend_vulkan.c.

                                                        {
  uint32_t queueFamilyCount = 0;
  vkGetPhysicalDeviceQueueFamilyProperties(ctx->physicalDevice, &queueFamilyCount, NULL);

  SblArenaMark mark = sbl_arena_mark(ctx->arena);
  VkQueueFamilyProperties* queueFamilies =
    SBL_ARENA_PUSH_ARRAY(ctx->arena, VkQueueFamilyProperties, queueFamilyCount);
  if (!queueFamilies)
    return false;
  vkGetPhysicalDeviceQueueFamilyProperties(ctx->physicalDevice, &queueFamilyCount, queueFamilies);

  int graphicsFamily = -1;
  for (uint32_t i = 0; i < queueFamilyCount; i++) {
    VkBool32 presentSupport = false;
    vkGetPhysicalDeviceSurfaceSupportKHR(ctx->physicalDevice, i, ctx->surface, &presentSupport);
    if ((queueFamilies[i].queueFlags & VK_QUEUE_GRAPHICS_BIT) && presentSupport) {
      graphicsFamily = i;
      break;
    }
  }
  sbl_arena_rewind(ctx->arena, mark);

  if (graphicsFamily == -1) {
    fprintf(stderr, "[Vulkan] No suitable queue family found\n");
    return false;
  }
  ctx->graphicsQueueFamily = (uint32_t)graphicsFamily;

  float queuePriority = 1.0f;
  VkDeviceQueueCreateInfo queueCreateInfo = {
    .sType = VK_STRUCTURE_TYPE_DEVICE_QUEUE_CREATE_INFO,
    .queueFamilyIndex = ctx->graphicsQueueFamily,
    .queueCount = 1,
    .pQueuePriorities = &queuePriority,
  };

  VkPhysicalDeviceFeatures deviceFeatures = {
    .multiDrawIndirect = VK_TRUE,
    .shaderInt64 = VK_TRUE,
  };

  const char* deviceExtensions[] = { VK_KHR_SWAPCHAIN_EXTENSION_NAME,
                     VK_KHR_DYNAMIC_RENDERING_EXTENSION_NAME,
                     VK_KHR_BUFFER_DEVICE_ADDRESS_EXTENSION_NAME };

  VkPhysicalDeviceVulkan11Features features11 = {
    .sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_VULKAN_1_1_FEATURES,
    .shaderDrawParameters = VK_TRUE,
  };

  VkPhysicalDeviceVulkan12Features features12 = {
    .sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_VULKAN_1_2_FEATURES,
    .pNext = &features11,
    .bufferDeviceAddress = VK_TRUE,
    .hostQueryReset = VK_TRUE,
  };

  VkPhysicalDeviceDynamicRenderingFeatures dynamicRenderingFeatures = {
    .sType = VK_STRUCTURE_TYPE_PHYSICAL_DEVICE_DYNAMIC_RENDERING_FEATURES,
    .pNext = &features12,
    .dynamicRendering = VK_TRUE,
  };

  VkDeviceCreateInfo createInfo = {
    .sType = VK_STRUCTURE_TYPE_DEVICE_CREATE_INFO,
    .pNext = &dynamicRenderingFeatures,
    .queueCreateInfoCount = 1,
    .pQueueCreateInfos = &queueCreateInfo,
    .pEnabledFeatures = &deviceFeatures,
    .enabledExtensionCount = 3,
    .ppEnabledExtensionNames = deviceExtensions,
  };

  if (vkCreateDevice(ctx->physicalDevice, &createInfo, NULL, &ctx->device) != VK_SUCCESS) {
    fprintf(stderr, "[Vulkan] Failed to create logical device\n");
    return false;
  }

  volkLoadDeviceTable(&ctx->vk, ctx->device);

  ctx->vk.vkGetDeviceQueue(ctx->device, ctx->graphicsQueueFamily, 0, &ctx->graphicsQueue);

  printf("[Vulkan] Logical Device created (Dynamic Rendering enabled)\n");
  return true;
}

create_surface()

static bool create_surface ( sbgl_GfxContext * ctx, sbgl_Window * window )

static

Definition at line 514 of file sbgl_backend_vulkan.c.

                                                                      {
#ifdef SBGL_PLATFORM_WAYLAND
  VkWaylandSurfaceCreateInfoKHR createInfo = {
    .sType = VK_STRUCTURE_TYPE_WAYLAND_SURFACE_CREATE_INFO_KHR,
    .display = (struct wl_display*)sbgl_os_GetNativeDisplayHandle(window),
    .surface = (struct wl_surface*)sbgl_os_GetNativeWindowHandle(window),
  };
  if (vkCreateWaylandSurfaceKHR(ctx->instance, &createInfo, NULL, &ctx->surface) != VK_SUCCESS) {
    fprintf(stderr, "[Vulkan] Failed to create Wayland surface\n");
    return false;
  }
#elif defined(SBGL_PLATFORM_X11)
  VkXlibSurfaceCreateInfoKHR createInfo = {
    .sType = VK_STRUCTURE_TYPE_XLIB_SURFACE_CREATE_INFO_KHR,
    .dpy = (Display*)sbgl_os_GetNativeDisplayHandle(window),
    .window = (Window)(uintptr_t)sbgl_os_GetNativeWindowHandle(window),
  };
  if (vkCreateXlibSurfaceKHR(ctx->instance, &createInfo, NULL, &ctx->surface) != VK_SUCCESS) {
    fprintf(stderr, "[Vulkan] Failed to create Xlib surface\n");
    return false;
  }
#elif defined(_WIN32)
  VkWin32SurfaceCreateInfoKHR createInfo = {
    .sType = VK_STRUCTURE_TYPE_WIN32_SURFACE_CREATE_INFO_KHR,
    .hinstance = (HINSTANCE)sbgl_os_GetNativeInstanceHandle(window),
    .hwnd = (HWND)sbgl_os_GetNativeWindowHandle(window),
  };
  if (vkCreateWin32SurfaceKHR(ctx->instance, &createInfo, NULL, &ctx->surface) != VK_SUCCESS) {
    fprintf(stderr, "[Vulkan] Failed to create Win32 surface\n");
    return false;
  }
#endif

  printf("[Vulkan] Surface created successfully\n");
  return true;
}

create_swapchain()

static bool create_swapchain ( sbgl_GfxContext * ctx, sbgl_Window * window )

static

Definition at line 744 of file sbgl_backend_vulkan.c.

                                                                        {
  int w, h;
  sbgl_os_GetWindowSize(window, &w, &h);

  VkSurfaceCapabilitiesKHR capabilities;
  vkGetPhysicalDeviceSurfaceCapabilitiesKHR(ctx->physicalDevice, ctx->surface, &capabilities);

  VkExtent2D extent = { (uint32_t)w, (uint32_t)h };
  if (capabilities.currentExtent.width != 0xFFFFFFFF) {
    extent = capabilities.currentExtent;
  }

  if (extent.width == 0 || extent.height == 0) {
    return false;
  }

  uint32_t formatCount;
  vkGetPhysicalDeviceSurfaceFormatsKHR(ctx->physicalDevice, ctx->surface, &formatCount, NULL);
  if (formatCount == 0) {
    fprintf(stderr, "[Vulkan] No supported surface formats found\n");
    return false;
  }
  VkSurfaceFormatKHR formats[64];
  if (formatCount > 64)
    formatCount = 64;
  vkGetPhysicalDeviceSurfaceFormatsKHR(ctx->physicalDevice, ctx->surface, &formatCount, formats);

  VkSurfaceFormatKHR selectedFormat = formats[0];
  for (uint32_t i = 0; i < formatCount; i++) {
    if ((formats[i].format == VK_FORMAT_B8G8R8A8_SRGB ||
       formats[i].format == VK_FORMAT_R8G8B8A8_SRGB) &&
      formats[i].colorSpace == VK_COLOR_SPACE_SRGB_NONLINEAR_KHR) {
      selectedFormat = formats[i];
      break;
    }
  }

  uint32_t imageCount = capabilities.minImageCount + 1;
  if (capabilities.maxImageCount > 0 && imageCount > capabilities.maxImageCount) {
    imageCount = capabilities.maxImageCount;
  }

  VkPresentModeKHR presentMode = VK_PRESENT_MODE_FIFO_KHR;
  uint32_t presentModeCount;
  vkGetPhysicalDeviceSurfacePresentModesKHR(
    ctx->physicalDevice,
    ctx->surface,
    &presentModeCount,
    NULL
  );
  if (presentModeCount > 0) {
    VkPresentModeKHR presentModes[16];
    if (presentModeCount > 16)
      presentModeCount = 16;
    vkGetPhysicalDeviceSurfacePresentModesKHR(
      ctx->physicalDevice,
      ctx->surface,
      &presentModeCount,
      presentModes
    );

    /* The system prioritizes present modes that minimize latency and maximize throughput.
       IMMEDIATE is preferred for raw benchmarks, while MAILBOX provides high-performance
       triple-buffering without tearing. */
    bool mailboxSupported = false;
    bool immediateSupported = false;
    for (uint32_t i = 0; i < presentModeCount; i++) {
      if (presentModes[i] == VK_PRESENT_MODE_IMMEDIATE_KHR)
        immediateSupported = true;
      if (presentModes[i] == VK_PRESENT_MODE_MAILBOX_KHR)
        mailboxSupported = true;
    }

    if (immediateSupported) {
      presentMode = VK_PRESENT_MODE_IMMEDIATE_KHR;
    } else if (mailboxSupported) {
      presentMode = VK_PRESENT_MODE_MAILBOX_KHR;
    }
  }

  VkSwapchainCreateInfoKHR createInfo = {
    .sType = VK_STRUCTURE_TYPE_SWAPCHAIN_CREATE_INFO_KHR,
    .surface = ctx->surface,
    .minImageCount = imageCount,
    .imageFormat = selectedFormat.format,
    .imageColorSpace = selectedFormat.colorSpace,
    .imageExtent = extent,
    .imageArrayLayers = 1,
    .imageUsage = VK_IMAGE_USAGE_COLOR_ATTACHMENT_BIT,
    .imageSharingMode = VK_SHARING_MODE_EXCLUSIVE,
    .preTransform = capabilities.currentTransform,
    .compositeAlpha = VK_COMPOSITE_ALPHA_OPAQUE_BIT_KHR,
    .presentMode = presentMode,
    .clipped = VK_TRUE,
  };

  if (ctx->vk.vkCreateSwapchainKHR(ctx->device, &createInfo, NULL, &ctx->swapchain) !=
    VK_SUCCESS) {
    fprintf(stderr, "[Vulkan] Failed to create swapchain\n");
    return false;
  }

  ctx->swapchainExtent = createInfo.imageExtent;
  ctx->swapchainFormat = createInfo.imageFormat;

  ctx->vk.vkGetSwapchainImagesKHR(ctx->device, ctx->swapchain, &ctx->imageCount, NULL);

  ctx->swapchainMark = sbl_arena_mark(ctx->arena);
  ctx->images = SBL_ARENA_PUSH_ARRAY(ctx->arena, VkImage, ctx->imageCount);
  if (!ctx->images)
    return false;
  ctx->vk.vkGetSwapchainImagesKHR(ctx->device, ctx->swapchain, &ctx->imageCount, ctx->images);

  ctx->imageViews = SBL_ARENA_PUSH_ARRAY(ctx->arena, VkImageView, ctx->imageCount);
  if (!ctx->imageViews)
    return false;
  for (uint32_t i = 0; i < ctx->imageCount; i++) {
    VkImageViewCreateInfo viewInfo = {
      .sType = VK_STRUCTURE_TYPE_IMAGE_VIEW_CREATE_INFO,
      .image = ctx->images[i],
      .viewType = VK_IMAGE_VIEW_TYPE_2D,
      .format = ctx->swapchainFormat,
      .subresourceRange = { .aspectMask = VK_IMAGE_ASPECT_COLOR_BIT,
                  .levelCount = 1,
                  .layerCount = 1 },
    };
    ctx->vk.vkCreateImageView(ctx->device, &viewInfo, NULL, &ctx->imageViews[i]);
  }

  printf(
    "[Vulkan] Swapchain created (%dx%d, %u images, format: %d)\n",
    ctx->swapchainExtent.width,
    ctx->swapchainExtent.height,
    ctx->imageCount,
    ctx->swapchainFormat
  );

  if (!create_depth_resources(ctx))
    return false;

  return true;
}

create_sync_and_command()

static bool create_sync_and_command ( sbgl_GfxContext * ctx )

static

Definition at line 887 of file sbgl_backend_vulkan.c.

                                                          {
  VkCommandPoolCreateInfo poolInfo = {
    .sType = VK_STRUCTURE_TYPE_COMMAND_POOL_CREATE_INFO,
    .flags = VK_COMMAND_POOL_CREATE_RESET_COMMAND_BUFFER_BIT,
    .queueFamilyIndex = ctx->graphicsQueueFamily,
  };
  if (ctx->vk.vkCreateCommandPool(ctx->device, &poolInfo, NULL, &ctx->commandPool) != VK_SUCCESS)
    return false;

  VkCommandBufferAllocateInfo allocInfo = {
    .sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_ALLOCATE_INFO,
    .commandPool = ctx->commandPool,
    .level = VK_COMMAND_BUFFER_LEVEL_PRIMARY,
    .commandBufferCount = SBGL_MAX_FRAMES_IN_FLIGHT,
  };
  if (ctx->vk.vkAllocateCommandBuffers(ctx->device, &allocInfo, ctx->commandBuffers) !=
    VK_SUCCESS)
    return false;

  VkSemaphoreCreateInfo semInfo = { .sType = VK_STRUCTURE_TYPE_SEMAPHORE_CREATE_INFO };
  VkFenceCreateInfo fenceInfo = { .sType = VK_STRUCTURE_TYPE_FENCE_CREATE_INFO,
                  .flags = VK_FENCE_CREATE_SIGNALED_BIT };

  for (uint32_t i = 0; i < SBGL_MAX_FRAMES_IN_FLIGHT; i++) {
    if (ctx->vk.vkCreateFence(ctx->device, &fenceInfo, NULL, &ctx->inFlightFences[i]) !=
      VK_SUCCESS)
      return false;
  }

  for (uint32_t i = 0; i < SBGL_MAX_SWAPCHAIN_IMAGES; i++) {
    if (ctx->vk.vkCreateSemaphore(
        ctx->device,
        &semInfo,
        NULL,
        &ctx->imageAvailableSemaphores[i]
      ) != VK_SUCCESS ||
      ctx->vk.vkCreateSemaphore(
        ctx->device,
        &semInfo,
        NULL,
        &ctx->renderFinishedSemaphores[i]
      ) != VK_SUCCESS)
      return false;
  }

  return true;
}

create_telemetry_resources()

static bool create_telemetry_resources ( sbgl_GfxContext * ctx )

static

Definition at line 935 of file sbgl_backend_vulkan.c.

                                                             {
  /* The system initializes a query pool with two timestamp slots for each frame in flight
     to track GPU execution time, enabling performance telemetry across the full pipeline. */
  VkQueryPoolCreateInfo queryPoolInfo = {
    .sType = VK_STRUCTURE_TYPE_QUERY_POOL_CREATE_INFO,
    .queryType = VK_QUERY_TYPE_TIMESTAMP,
    .queryCount = SBGL_MAX_FRAMES_IN_FLIGHT * 2,
  };

  if (ctx->vk.vkCreateQueryPool(ctx->device, &queryPoolInfo, NULL, &ctx->queryPool) !=
    VK_SUCCESS) {
    return false;
  }

  /* The timestamp period is retrieved from physical device properties to convert
     GPU clock cycles into nanoseconds. */
  VkPhysicalDeviceProperties props;
  vkGetPhysicalDeviceProperties(ctx->physicalDevice, &props);
  ctx->timestampPeriod = props.limits.timestampPeriod;

  return true;
}

create_transient_resources()

static bool create_transient_resources ( sbgl_GfxContext * ctx )

static

Definition at line 958 of file sbgl_backend_vulkan.c.

                                                             {
  /* The system allocates persistent, large-scale buffers for each frame in flight,
     enabling high-frequency data updates without the overhead of per-frame allocations. */
  for (uint32_t i = 0; i < SBGL_MAX_FRAMES_IN_FLIGHT; i++) {
    ctx->transientBuffers[i] = sbgl_gfx_CreateBuffer(
      ctx,
      SBGL_BUFFER_USAGE_STORAGE | SBGL_BUFFER_USAGE_INDIRECT,
      SBGL_TRANSIENT_BUFFER_SIZE,
      NULL
    );
    if (ctx->transientBuffers[i] == SBGL_INVALID_HANDLE) {
      return false;
    }

    uint32_t idx = (uint32_t)ctx->transientBuffers[i] - 1;
    SBGL_VulkanBuffer* buffer = &ctx->buffers[idx];

    /* The system utilizes the persistent mapping established during buffer creation
       to provide zero-copy access to the transient memory pools. */
    ctx->transientMapped[i] = buffer->mapped;
    if (!ctx->transientMapped[i]) {
      return false;
    }
    ctx->transientOffsets[i] = 0;
  }
  return true;
}

dynamic_heap_alloc()

static uint32_t dynamic_heap_alloc ( sbgl_GfxContext * ctx, size_t size )

static

Definition at line 298 of file sbgl_backend_vulkan.c.

                                                                      {
  /* Dynamic allocations are performed within the heap slice corresponding to the
     currently active frame, utilizing a 256-byte alignment for hardware compatibility. */
  uint32_t alignedSize = (uint32_t)((size + 255) & ~255);
  uint32_t frame = ctx->currentFrame;
  uint32_t halfSize = ctx->dynamicHeap.size / 2;

  if (ctx->dynamicHeap.offset[frame] + alignedSize > halfSize) {
    /* If the dynamic allocation exceeds the current frame's capacity, the context
       is marked with an out-of-memory error to prevent invalid GPU access. */
    ctx->result = SBGL_ERROR_OUT_OF_MEMORY;
    return SBGL_INVALID_OFFSET;
  }

  uint32_t offset = ctx->dynamicHeap.offset[frame];
  ctx->dynamicHeap.offset[frame] += alignedSize;
  return offset;
}

find_depth_format()

static bool find_depth_format ( sbgl_GfxContext * ctx )

static

Definition at line 672 of file sbgl_backend_vulkan.c.

                                                    {
  VkFormat candidates[] = { VK_FORMAT_D32_SFLOAT,
                VK_FORMAT_D32_SFLOAT_S8_UINT,
                VK_FORMAT_D24_UNORM_S8_UINT };
  for (uint32_t i = 0; i < 3; i++) {
    VkFormatProperties props;
    vkGetPhysicalDeviceFormatProperties(ctx->physicalDevice, candidates[i], &props);
    if (props.optimalTilingFeatures & VK_FORMAT_FEATURE_DEPTH_STENCIL_ATTACHMENT_BIT) {
      ctx->depthFormat = candidates[i];
      return true;
    }
  }
  return false;
}

find_memory_type()

static uint32_t find_memory_type ( sbgl_GfxContext * ctx, uint32_t typeFilter, VkMemoryPropertyFlags properties )

static

Definition at line 268 of file sbgl_backend_vulkan.c.

                                                                                              {
  VkPhysicalDeviceMemoryProperties memProperties;
  vkGetPhysicalDeviceMemoryProperties(ctx->physicalDevice, &memProperties);

  for (uint32_t i = 0; i < memProperties.memoryTypeCount; i++) {
    if ((typeFilter & (1 << i)) &&
      (memProperties.memoryTypes[i].propertyFlags & properties) == properties) {
      return i;
    }
  }
  return SBGL_INVALID_OFFSET;
}

managed_heap_alloc()

static uint32_t managed_heap_alloc ( sbgl_GfxContext * ctx, size_t size )

static

Definition at line 317 of file sbgl_backend_vulkan.c.

                                                                      {
  /* The sub-allocator utilizes a first-fit strategy across an array of memory
     ranges, ensuring each allocation is aligned to a 256-byte boundary. */
  uint32_t alignedSize = (uint32_t)((size + 255) & ~255);

  for (uint32_t i = 0; i < ctx->managedHeap.rangeCount; i++) {
    sbgl_GfxMemoryRange* range = &ctx->managedHeap.ranges[i];

    /* A range is considered a candidate if it is currently unassigned (handle_index 0)
       and possesses sufficient capacity to accommodate the requested aligned size. */
    if (range->handle_index == 0 && range->size >= alignedSize) {
      uint32_t offset = range->offset;

      if (range->size > alignedSize) {
        /* If the selected range is larger than the requested size, it is split into
           two segments: the allocated block and a new unassigned trailing range. */
        if (ctx->managedHeap.rangeCount >= 1024) {
          /* The allocation fails if the maximum number of range descriptors is exceeded. */
          ctx->result = SBGL_ERROR_OUT_OF_MEMORY;
          return SBGL_INVALID_OFFSET;
        }

        /* Shift subsequent ranges to maintain the sequential order of the range array. */
        for (uint32_t j = ctx->managedHeap.rangeCount; j > i + 1; j--) {
          ctx->managedHeap.ranges[j] = ctx->managedHeap.ranges[j - 1];
        }

        /* Initialize the new free range representing the remaining space in the block. */
        ctx->managedHeap.ranges[i + 1] = (sbgl_GfxMemoryRange){
          .offset = offset + alignedSize,
          .size = range->size - alignedSize,
          .handle_index = 0
        };

        ctx->managedHeap.rangeCount++;
        range->size = alignedSize;
      }

      /* The range is marked as active by assigning a non-zero handle index (1 is used
         as a generic active marker in this implementation stage). */
      range->handle_index = 1;
      return offset;
    }
  }

  /* If no suitable range is identified, the context state is updated to reflect
     the allocation failure. */
  ctx->result = SBGL_ERROR_OUT_OF_MEMORY;
  return SBGL_INVALID_OFFSET;
}

managed_heap_free()

static void managed_heap_free ( sbgl_GfxContext * ctx, uint32_t offset )

static

Definition at line 368 of file sbgl_backend_vulkan.c.

                                                                     {
  /* The freeing process identifies the range associated with the given offset
     and attempts to merge it with adjacent free blocks to mitigate fragmentation. */
  for (uint32_t i = 0; i < ctx->managedHeap.rangeCount; i++) {
    if (ctx->managedHeap.ranges[i].offset == offset) {
      /* The block is transitioned back to an unassigned state. */
      ctx->managedHeap.ranges[i].handle_index = 0;

      /* Coalescing with the subsequent block occurs if it is also unassigned. */
      if (i + 1 < ctx->managedHeap.rangeCount && ctx->managedHeap.ranges[i + 1].handle_index == 0) {
        ctx->managedHeap.ranges[i].size += ctx->managedHeap.ranges[i + 1].size;
        for (uint32_t j = i + 1; j < ctx->managedHeap.rangeCount - 1; j++) {
          ctx->managedHeap.ranges[j] = ctx->managedHeap.ranges[j + 1];
        }
        ctx->managedHeap.rangeCount--;
      }

      /* Coalescing with the preceding block occurs if it is also unassigned. */
      if (i > 0 && ctx->managedHeap.ranges[i - 1].handle_index == 0) {
        ctx->managedHeap.ranges[i - 1].size += ctx->managedHeap.ranges[i].size;
        for (uint32_t j = i; j < ctx->managedHeap.rangeCount - 1; j++) {
          ctx->managedHeap.ranges[j] = ctx->managedHeap.ranges[j + 1];
        }
        ctx->managedHeap.rangeCount--;
      }

      return;
    }
  }

  fprintf(stderr, "[Vulkan] managed_heap_free: offset %u not found in tracked ranges (possible double-free or corruption)\n", offset);
}

recreate_swapchain()

static void recreate_swapchain ( sbgl_GfxContext * ctx )

static

Definition at line 183 of file sbgl_backend_vulkan.c.

                                                     {
  int w = 0, h = 0;
  sbgl_os_GetWindowSize(ctx->window, &w, &h);
  while (w == 0 || h == 0) {
    sbgl_os_GetWindowSize(ctx->window, &w, &h);
    sbgl_os_PollEvents(ctx->window);
  }

  ctx->vk.vkDeviceWaitIdle(ctx->device);

  cleanup_swapchain(ctx);
  create_swapchain(ctx, ctx->window);
}

sbgl_gfx_AllocateTransient()

sbgl_GfxTransientAllocation sbgl_gfx_AllocateTransient	(	sbgl_GfxContext *	ctx,
		size_t	size,
		uint32_t	alignment )

Allocates a slice of GPU-visible memory for transient per-frame data.

This memory is managed by the backend's internal per-frame ring buffers and does not require manual destruction.

Parameters

ctx	The graphics context.
size	The number of bytes to allocate.
alignment	The required byte alignment for the allocation.

Returns

A structure containing the allocation metadata and mapped pointer.

Definition at line 2040 of file sbgl_backend_vulkan.c.

                                                                                  {
  /* The system sub-allocates from the current frame's persistent buffer, respecting
     the requested alignment to ensure compatibility with Vulkan requirements. */
  uint32_t frame = ctx->currentFrame;
  uint32_t offset = ctx->transientOffsets[frame];

  if (alignment > 0) {
    offset = (offset + alignment - 1) & ~(alignment - 1);
  }

  if (offset + size > SBGL_TRANSIENT_BUFFER_SIZE) {
    fprintf(stderr, "[Vulkan] Transient buffer overflow for frame %u!\n", frame);
    return (sbgl_GfxTransientAllocation){ 0 };
  }

  sbgl_GfxTransientAllocation alloc = {
    .buffer = ctx->transientBuffers[frame],
    .offset = offset,
    .size = (uint32_t)size,
    .mapped = (char*)ctx->transientMapped[frame] + offset,
    .deviceAddress = sbgl_gfx_GetBufferDeviceAddress(ctx, ctx->transientBuffers[frame]) + offset
  };

  ctx->transientOffsets[frame] = offset + (uint32_t)size;
  return alloc;
}

sbgl_gfx_BeginFrame()

bool sbgl_gfx_BeginFrame

(

sbgl_GfxContext *

ctx

)

Starts a new frame, acquiring an image and starting the command buffer.

This must be called before any GPU commands (Compute or Graphics) are recorded.

Definition at line 1106 of file sbgl_backend_vulkan.c.

                                               {
  ctx->vk.vkWaitForFences(
    ctx->device,
    1,
    &ctx->inFlightFences[ctx->currentFrame],
    VK_TRUE,
    UINT64_MAX
  );

  /* The system processes the deferred destruction queue for the current frame slot,
     releasing GPU resources that are no longer in flight. */
  for (uint32_t i = 0; i < ctx->deferredCount[ctx->currentFrame]; i++) {
    sbgl_gfx_DestroyBuffer(ctx, ctx->deferredBuffers[ctx->currentFrame][i]);
  }
  ctx->deferredCount[ctx->currentFrame] = 0;

  /* The transient allocation offset is reset for the current frame, effectively
     recycling the GPU memory for new data while ensuring it does not overlap with
     memory currently in use by other frames in flight. */
  ctx->transientOffsets[ctx->currentFrame] = 0;
  ctx->dynamicHeap.offset[ctx->currentFrame] = 0;

  if (sbgl_os_WasWindowResized(ctx->window)) {
    recreate_swapchain(ctx);
  }

  VkResult result = ctx->vk.vkAcquireNextImageKHR(
    ctx->device,
    ctx->swapchain,
    UINT64_MAX,
    ctx->imageAvailableSemaphores[ctx->semaphoreIndex],
    VK_NULL_HANDLE,
    &ctx->currentImageIndex
  );

  ctx->backendResult = result;

  if (result == VK_ERROR_OUT_OF_DATE_KHR) {
    recreate_swapchain(ctx);
    return false;
  } else if (result != VK_SUCCESS && result != VK_SUBOPTIMAL_KHR) {
    return false;
  }

  ctx->vk.vkResetFences(ctx->device, 1, &ctx->inFlightFences[ctx->currentFrame]);
  ctx->vk.vkResetCommandBuffer(ctx->commandBuffers[ctx->currentFrame], 0);
  VkCommandBufferBeginInfo beginInfo = { .sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_BEGIN_INFO };
  ctx->vk.vkBeginCommandBuffer(ctx->commandBuffers[ctx->currentFrame], &beginInfo);

  /* The system resets the query pool for the current frame to prepare for new
     timestamp recordings. */
  ctx->vk.vkCmdResetQueryPool(
    ctx->commandBuffers[ctx->currentFrame],
    ctx->queryPool,
    ctx->currentFrame * 2,
    2
  );

  return true;
}

sbgl_gfx_BeginRenderPass()

void sbgl_gfx_BeginRenderPass	(	sbgl_GfxContext *	ctx,
		float	r,
		float	g,
		float	b,
		float	a )

Starts a graphics rendering pass.

This must be called before any draw commands are recorded. It handles clearing the attachments if requested.

Definition at line 1167 of file sbgl_backend_vulkan.c.

                                                                                        {
  /* The system records the starting timestamp at the beginning of the graphics pass. */
  ctx->vk.vkCmdWriteTimestamp(
    ctx->commandBuffers[ctx->currentFrame],
    VK_PIPELINE_STAGE_TOP_OF_PIPE_BIT,
    ctx->queryPool,
    ctx->currentFrame * 2
  );

  VkImageMemoryBarrier barriers[2] = { 0 };
  barriers[0].sType = VK_STRUCTURE_TYPE_IMAGE_MEMORY_BARRIER;
  barriers[0].oldLayout = VK_IMAGE_LAYOUT_UNDEFINED;
  barriers[0].newLayout = VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL;
  barriers[0].image = ctx->images[ctx->currentImageIndex];
  barriers[0].subresourceRange =
    (VkImageSubresourceRange){ .aspectMask = VK_IMAGE_ASPECT_COLOR_BIT,
                   .levelCount = 1,
                   .layerCount = 1 };
  barriers[0].dstAccessMask = VK_ACCESS_COLOR_ATTACHMENT_WRITE_BIT;

  barriers[1].sType = VK_STRUCTURE_TYPE_IMAGE_MEMORY_BARRIER;
  barriers[1].oldLayout = VK_IMAGE_LAYOUT_UNDEFINED;
  barriers[1].newLayout = VK_IMAGE_LAYOUT_DEPTH_ATTACHMENT_OPTIMAL;
  barriers[1].image = ctx->depthImage;
  barriers[1].subresourceRange =
    (VkImageSubresourceRange){ .aspectMask = VK_IMAGE_ASPECT_DEPTH_BIT,
                   .levelCount = 1,
                   .layerCount = 1 };
  barriers[1].dstAccessMask = VK_ACCESS_DEPTH_STENCIL_ATTACHMENT_WRITE_BIT;

  ctx->vk.vkCmdPipelineBarrier(
    ctx->commandBuffers[ctx->currentFrame],
    VK_PIPELINE_STAGE_TOP_OF_PIPE_BIT,
    VK_PIPELINE_STAGE_COLOR_ATTACHMENT_OUTPUT_BIT | VK_PIPELINE_STAGE_EARLY_FRAGMENT_TESTS_BIT,
    0,
    0,
    NULL,
    0,
    NULL,
    2,
    barriers
  );

  VkRenderingAttachmentInfo colorAttachment = {
    .sType = VK_STRUCTURE_TYPE_RENDERING_ATTACHMENT_INFO,
    .imageView = ctx->imageViews[ctx->currentImageIndex],
    .imageLayout = VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL,
    .loadOp = VK_ATTACHMENT_LOAD_OP_CLEAR,
    .storeOp = VK_ATTACHMENT_STORE_OP_STORE,
    .clearValue = { { { r, g, b, a } } },
  };

  VkRenderingAttachmentInfo depthAttachment = {
    .sType = VK_STRUCTURE_TYPE_RENDERING_ATTACHMENT_INFO,
    .imageView = ctx->depthImageView,
    .imageLayout = VK_IMAGE_LAYOUT_DEPTH_ATTACHMENT_OPTIMAL,
    .loadOp = VK_ATTACHMENT_LOAD_OP_CLEAR,
    .storeOp = VK_ATTACHMENT_STORE_OP_STORE,
    .clearValue = { .depthStencil = { 1.0f, 0 } },
  };

  VkRenderingInfo renderingInfo = {
    .sType = VK_STRUCTURE_TYPE_RENDERING_INFO,
    .renderArea = { .extent = ctx->swapchainExtent },
    .layerCount = 1,
    .colorAttachmentCount = 1,
    .pColorAttachments = &colorAttachment,
    .pDepthAttachment = &depthAttachment,
  };

  ctx->vk.vkCmdBeginRendering(ctx->commandBuffers[ctx->currentFrame], &renderingInfo);
}

sbgl_gfx_BindBuffer()

void sbgl_gfx_BindBuffer	(	sbgl_GfxContext *	ctx,
		sbgl_Buffer	handle,
		sbgl_BufferUsage	usage )

Definition at line 1971 of file sbgl_backend_vulkan.c.

                                                                                           {
  if (handle == SBGL_INVALID_HANDLE)
    return;
  uint32_t index = (uint32_t)handle - 1;
  if (index >= ctx->limits.maxBuffers || !ctx->bufferActive[index])
    return;

  if (usage == SBGL_BUFFER_USAGE_VERTEX) {
    VkDeviceSize offsets[] = { 0 };
    ctx->vk.vkCmdBindVertexBuffers(
      ctx->commandBuffers[ctx->currentFrame],
      0,
      1,
      &ctx->buffers[index].handle,
      offsets
    );
  } else if (usage == SBGL_BUFFER_USAGE_INDEX) {
    ctx->vk.vkCmdBindIndexBuffer(
      ctx->commandBuffers[ctx->currentFrame],
      ctx->buffers[index].handle,
      0,
      VK_INDEX_TYPE_UINT32
    );
  }
}

sbgl_gfx_BindComputePipeline()

void sbgl_gfx_BindComputePipeline	(	sbgl_GfxContext *	ctx,
		sbgl_ComputePipeline	handle )

Definition at line 1851 of file sbgl_backend_vulkan.c.

                                                                                     {
  /* The currently active command buffer is updated to utilize the specified compute
     pipeline for all subsequent dispatch operations. */
  if (handle == SBGL_INVALID_HANDLE) {
    ctx->boundComputePipeline = SBGL_INVALID_HANDLE;
    return;
  }
  uint32_t index = (uint32_t)handle - 1;
  if (index >= ctx->limits.maxPipelines || !ctx->computePipelines[index].active)
    return;

  ctx->vk.vkCmdBindPipeline(
    ctx->commandBuffers[ctx->currentFrame],
    VK_PIPELINE_BIND_POINT_COMPUTE,
    ctx->computePipelines[index].handle
  );
  ctx->boundComputePipeline = handle;
}

sbgl_gfx_BindPipeline()

void sbgl_gfx_BindPipeline	(	sbgl_GfxContext *	ctx,
		sbgl_Pipeline	handle )

Definition at line 1943 of file sbgl_backend_vulkan.c.

                                                                       {
  if (handle == SBGL_INVALID_HANDLE)
    return;
  uint32_t index = (uint32_t)handle - 1;
  if (index >= ctx->limits.maxPipelines || !ctx->pipelines[index].active)
    return;

  ctx->vk.vkCmdBindPipeline(
    ctx->commandBuffers[ctx->currentFrame],
    VK_PIPELINE_BIND_POINT_GRAPHICS,
    ctx->pipelines[index].handle
  );
  ctx->boundPipeline = handle;

  VkViewport viewport = {
    .x = 0.0f,
    .y = (float)ctx->swapchainExtent.height,
    .width = (float)ctx->swapchainExtent.width,
    .height = -(float)ctx->swapchainExtent.height,
    .minDepth = 0.0f,
    .maxDepth = 1.0f,
  };
  ctx->vk.vkCmdSetViewport(ctx->commandBuffers[ctx->currentFrame], 0, 1, &viewport);

  VkRect2D scissor = { .offset = { 0, 0 }, .extent = ctx->swapchainExtent };
  ctx->vk.vkCmdSetScissor(ctx->commandBuffers[ctx->currentFrame], 0, 1, &scissor);
}

sbgl_gfx_CreateBuffer()

sbgl_Buffer sbgl_gfx_CreateBuffer	(	sbgl_GfxContext *	ctx,
		sbgl_BufferUsage	usage,
		size_t	size,
		const void *	data )

Definition at line 1324 of file sbgl_backend_vulkan.c.

                                                                                                   {
  /* Search for an available buffer slot in the internal tracking arrays. */
  uint32_t index = 0;
  for (; index < ctx->limits.maxBuffers; index++) {
    if (!ctx->bufferActive[index])
      break;
  }
  if (index == ctx->limits.maxBuffers)
    return SBGL_INVALID_HANDLE;

  /* Identify the target memory heap based on the buffer's intended usage.
     Vertex and index buffers are assigned to the static heap, while storage
     buffers utilize the managed heap for persistence. */
  SBGL_HeapType heapType = SBGL_HEAP_TYPE_MANAGED;
  if (usage & (SBGL_BUFFER_USAGE_VERTEX | SBGL_BUFFER_USAGE_INDEX)) {
    heapType = SBGL_HEAP_TYPE_STATIC;
  } else if (usage & SBGL_BUFFER_USAGE_STORAGE) {
    heapType = SBGL_HEAP_TYPE_MANAGED;
  }

  VkBufferCreateInfo bufferInfo = {
    .sType = VK_STRUCTURE_TYPE_BUFFER_CREATE_INFO,
    .size = size,
    .usage = (usage & SBGL_BUFFER_USAGE_VERTEX ? VK_BUFFER_USAGE_VERTEX_BUFFER_BIT : 0) |
         (usage & SBGL_BUFFER_USAGE_INDEX ? VK_BUFFER_USAGE_INDEX_BUFFER_BIT : 0) |
         (usage & SBGL_BUFFER_USAGE_STORAGE ? VK_BUFFER_USAGE_STORAGE_BUFFER_BIT : 0) |
         (usage & SBGL_BUFFER_USAGE_INDIRECT ? VK_BUFFER_USAGE_INDIRECT_BUFFER_BIT : 0) |
         (usage & SBGL_BUFFER_USAGE_TRANSFER_DST ? VK_BUFFER_USAGE_TRANSFER_DST_BIT : 0) |
         VK_BUFFER_USAGE_SHADER_DEVICE_ADDRESS_BIT,
    .sharingMode = VK_SHARING_MODE_EXCLUSIVE,
  };

  SBGL_VulkanBuffer* buffer = &ctx->buffers[index];
  if (ctx->vk.vkCreateBuffer(ctx->device, &bufferInfo, NULL, &buffer->handle) != VK_SUCCESS) {
    return SBGL_INVALID_HANDLE;
  }

  VkMemoryRequirements memRequirements;
  ctx->vk.vkGetBufferMemoryRequirements(ctx->device, buffer->handle, &memRequirements);

  /* Sub-allocate the required memory range from the selected hybrid heap. */
  uint32_t offset = SBGL_INVALID_OFFSET;
  VkDeviceMemory heapMemory = VK_NULL_HANDLE;
  void* heapMappedBase = NULL;

  switch (heapType) {
  case SBGL_HEAP_TYPE_STATIC:
    offset = static_heap_alloc(ctx, memRequirements.size);
    heapMemory = ctx->staticHeap.memory;
    heapMappedBase = ctx->staticHeap.mapped;
    break;
  case SBGL_HEAP_TYPE_DYNAMIC:
    offset = dynamic_heap_alloc(ctx, memRequirements.size);
    heapMemory = ctx->dynamicHeap.memory;
    heapMappedBase = ctx->dynamicHeap.mapped[ctx->currentFrame];
    break;
  case SBGL_HEAP_TYPE_MANAGED:
    offset = managed_heap_alloc(ctx, memRequirements.size);
    heapMemory = ctx->managedHeap.memory;
    heapMappedBase = ctx->managedHeap.mapped;
    break;
  }

  if (offset == SBGL_INVALID_OFFSET) {
    ctx->vk.vkDestroyBuffer(ctx->device, buffer->handle, NULL);
    return SBGL_INVALID_HANDLE;
  }

  /* Bind the buffer handle to the sub-allocated memory region within the heap. */
  ctx->vk.vkBindBufferMemory(ctx->device, buffer->handle, heapMemory, offset);

  buffer->size = size;
  buffer->offset = offset;
  buffer->heapType = heapType;
  buffer->mapped = (char*)heapMappedBase + offset;
  ctx->bufferActive[index] = true;

  /* If initial data is provided, perform an immediate memory copy to the
     persistently mapped buffer address. */
  if (data && buffer->mapped) {
    memcpy(buffer->mapped, data, size);
  }

  return (sbgl_Buffer)(index + 1);
}

sbgl_gfx_CreateComputePipeline()

sbgl_ComputePipeline sbgl_gfx_CreateComputePipeline	(	sbgl_GfxContext *	ctx,
		sbgl_Shader	handle )

Definition at line 1764 of file sbgl_backend_vulkan.c.

                                                                                              {
  /* The system scans the internal pipeline storage for an available slot to allocate
     the new compute pipeline state. */
  uint32_t index = 0;
  for (; index < ctx->limits.maxPipelines; index++) {
    if (!ctx->computePipelines[index].active)
      break;
  }
  if (index == ctx->limits.maxPipelines)
    return SBGL_INVALID_HANDLE;

  if (handle == SBGL_INVALID_HANDLE || handle > ctx->limits.maxShaders) {
    fprintf(stderr, "[Vulkan] Invalid compute shader handle\n");
    return SBGL_INVALID_HANDLE;
  }
  uint32_t shaderIndex = handle - 1;
  if (!ctx->shaders[shaderIndex].active || ctx->shaders[shaderIndex].stage != SBGL_SHADER_STAGE_COMPUTE) {
    fprintf(stderr, "[Vulkan] Invalid compute shader stage or inactive shader\n");
    return SBGL_INVALID_HANDLE;
  }

  VkPipelineShaderStageCreateInfo stageInfo = {
    .sType = VK_STRUCTURE_TYPE_PIPELINE_SHADER_STAGE_CREATE_INFO,
    .stage = VK_SHADER_STAGE_COMPUTE_BIT,
    .module = ctx->shaders[shaderIndex].module,
    .pName = "main",
  };

  VkPipelineLayoutCreateInfo layoutInfo = {
    .sType = VK_STRUCTURE_TYPE_PIPELINE_LAYOUT_CREATE_INFO,
  };

  /* The system utilizes a standardized push constant block across both graphics
     and compute pipelines to maintain architectural consistency. */
  VkPushConstantRange pushConstantRange = {
    .stageFlags = VK_SHADER_STAGE_COMPUTE_BIT,
    .offset = 0,
    .size = SBGL_VK_PUSH_CONSTANT_SIZE,
  };
  layoutInfo.pushConstantRangeCount = 1;
  layoutInfo.pPushConstantRanges = &pushConstantRange;

  if (ctx->vk.vkCreatePipelineLayout(
      ctx->device,
      &layoutInfo,
      NULL,
      &ctx->computePipelines[index].layout
    ) != VK_SUCCESS) {
    return SBGL_INVALID_HANDLE;
  }

  VkComputePipelineCreateInfo pipelineInfo = {
    .sType = VK_STRUCTURE_TYPE_COMPUTE_PIPELINE_CREATE_INFO,
    .stage = stageInfo,
    .layout = ctx->computePipelines[index].layout,
  };

  if (ctx->vk.vkCreateComputePipelines(
      ctx->device,
      VK_NULL_HANDLE,
      1,
      &pipelineInfo,
      NULL,
      &ctx->computePipelines[index].handle
    ) != VK_SUCCESS) {
    ctx->vk.vkDestroyPipelineLayout(ctx->device, ctx->computePipelines[index].layout, NULL);
    return SBGL_INVALID_HANDLE;
  }

  ctx->computePipelines[index].active = true;
  return (sbgl_ComputePipeline)(index + 1);
}

sbgl_gfx_CreatePipeline()

sbgl_Pipeline sbgl_gfx_CreatePipeline	(	sbgl_GfxContext *	ctx,
		const sbgl_PipelineConfig *	config )

Definition at line 1551 of file sbgl_backend_vulkan.c.

                                                                                               {
  uint32_t index = 0;
  for (; index < ctx->limits.maxPipelines; index++) {
    if (!ctx->pipelines[index].active)
      break;
  }
  if (index == ctx->limits.maxPipelines)
    return SBGL_INVALID_HANDLE;

  VkPipelineShaderStageCreateInfo shaderStages[2] = { 0 };

  // Vertex Shader
  if (config->vertexShader == SBGL_INVALID_HANDLE || config->vertexShader > ctx->limits.maxShaders) {
    fprintf(stderr, "[Vulkan] Invalid vertex shader handle\n");
    return SBGL_INVALID_HANDLE;
  }
  uint32_t vsIndex = config->vertexShader - 1;
  if (!ctx->shaders[vsIndex].active || ctx->shaders[vsIndex].stage != SBGL_SHADER_STAGE_VERTEX) {
    fprintf(stderr, "[Vulkan] Invalid vertex shader stage or inactive shader\n");
    return SBGL_INVALID_HANDLE;
  }
  shaderStages[0].sType = VK_STRUCTURE_TYPE_PIPELINE_SHADER_STAGE_CREATE_INFO;
  shaderStages[0].stage = VK_SHADER_STAGE_VERTEX_BIT;
  shaderStages[0].module = ctx->shaders[vsIndex].module;
  shaderStages[0].pName = "main";

  // Fragment Shader
  if (config->fragmentShader == SBGL_INVALID_HANDLE || config->fragmentShader > ctx->limits.maxShaders) {
    fprintf(stderr, "[Vulkan] Invalid fragment shader handle\n");
    return SBGL_INVALID_HANDLE;
  }
  uint32_t fsIndex = config->fragmentShader - 1;
  if (!ctx->shaders[fsIndex].active || ctx->shaders[fsIndex].stage != SBGL_SHADER_STAGE_FRAGMENT) {
    fprintf(stderr, "[Vulkan] Invalid fragment shader stage or inactive shader\n");
    return SBGL_INVALID_HANDLE;
  }
  shaderStages[1].sType = VK_STRUCTURE_TYPE_PIPELINE_SHADER_STAGE_CREATE_INFO;
  shaderStages[1].stage = VK_SHADER_STAGE_FRAGMENT_BIT;
  shaderStages[1].module = ctx->shaders[fsIndex].module;
  shaderStages[1].pName = "main";

  VkVertexInputBindingDescription bindingDescription = {
    .binding = 0,
    .stride = config->vertexLayout.stride,
    .inputRate = VK_VERTEX_INPUT_RATE_VERTEX,
  };

  SblArenaMark mark = sbl_arena_mark(ctx->arena);
  VkVertexInputAttributeDescription* attributeDescriptions = SBL_ARENA_PUSH_ARRAY(
    ctx->arena,
    VkVertexInputAttributeDescription,
    config->vertexLayout.attributeCount
  );
  if (!attributeDescriptions && config->vertexLayout.attributeCount > 0) {
    return SBGL_INVALID_HANDLE;
  }
  for (uint32_t i = 0; i < config->vertexLayout.attributeCount; i++) {
    attributeDescriptions[i].binding = 0;
    attributeDescriptions[i].location = config->vertexLayout.attributes[i].location;
    attributeDescriptions[i].format =
      sbgl_to_vk_format(config->vertexLayout.attributes[i].format);
    attributeDescriptions[i].offset = config->vertexLayout.attributes[i].offset;
  }

  VkPipelineVertexInputStateCreateInfo vertexInputInfo = {
    .sType = VK_STRUCTURE_TYPE_PIPELINE_VERTEX_INPUT_STATE_CREATE_INFO,
    .vertexBindingDescriptionCount = 1,
    .pVertexBindingDescriptions = &bindingDescription,
    .vertexAttributeDescriptionCount = config->vertexLayout.attributeCount,
    .pVertexAttributeDescriptions = attributeDescriptions,
  };

  VkPipelineInputAssemblyStateCreateInfo inputAssembly = {
    .sType = VK_STRUCTURE_TYPE_PIPELINE_INPUT_ASSEMBLY_STATE_CREATE_INFO,
    .topology = VK_PRIMITIVE_TOPOLOGY_TRIANGLE_LIST,
    .primitiveRestartEnable = VK_FALSE,
  };

  VkPipelineViewportStateCreateInfo viewportState = {
    .sType = VK_STRUCTURE_TYPE_PIPELINE_VIEWPORT_STATE_CREATE_INFO,
    .viewportCount = 1,
    .scissorCount = 1,
  };

  VkPipelineRasterizationStateCreateInfo rasterizer = {
    .sType = VK_STRUCTURE_TYPE_PIPELINE_RASTERIZATION_STATE_CREATE_INFO,
    .depthClampEnable = VK_FALSE,
    .rasterizerDiscardEnable = VK_FALSE,
    .polygonMode = VK_POLYGON_MODE_FILL,
    .lineWidth = 1.0f,
    .cullMode = VK_CULL_MODE_BACK_BIT,
    .frontFace = VK_FRONT_FACE_COUNTER_CLOCKWISE,
    .depthBiasEnable = VK_FALSE,
  };

  VkPipelineMultisampleStateCreateInfo multisampling = {
    .sType = VK_STRUCTURE_TYPE_PIPELINE_MULTISAMPLE_STATE_CREATE_INFO,
    .sampleShadingEnable = VK_FALSE,
    .rasterizationSamples = VK_SAMPLE_COUNT_1_BIT,
  };

  VkPipelineDepthStencilStateCreateInfo depthStencil = {
    .sType = VK_STRUCTURE_TYPE_PIPELINE_DEPTH_STENCIL_STATE_CREATE_INFO,
    .depthTestEnable = VK_TRUE,
    .depthWriteEnable = VK_TRUE,
    .depthCompareOp = VK_COMPARE_OP_LESS,
    .depthBoundsTestEnable = VK_FALSE,
    .stencilTestEnable = VK_FALSE,
  };

  VkPipelineColorBlendAttachmentState colorBlendAttachment = {
    .colorWriteMask = VK_COLOR_COMPONENT_R_BIT | VK_COLOR_COMPONENT_G_BIT |
              VK_COLOR_COMPONENT_B_BIT | VK_COLOR_COMPONENT_A_BIT,
    .blendEnable = (config->blendMode != SBGL_BLEND_MODE_NONE) ? VK_TRUE : VK_FALSE,
    .srcColorBlendFactor = (config->blendMode == SBGL_BLEND_MODE_ADDITIVE) ? VK_BLEND_FACTOR_ONE : VK_BLEND_FACTOR_SRC_ALPHA,
    .dstColorBlendFactor = (config->blendMode == SBGL_BLEND_MODE_ADDITIVE) ? VK_BLEND_FACTOR_ONE : VK_BLEND_FACTOR_ONE_MINUS_SRC_ALPHA,
    .colorBlendOp = VK_BLEND_OP_ADD,
    .srcAlphaBlendFactor = VK_BLEND_FACTOR_ONE,
    .dstAlphaBlendFactor = VK_BLEND_FACTOR_ONE_MINUS_SRC_ALPHA,
    .alphaBlendOp = VK_BLEND_OP_ADD,
  };

  VkPipelineColorBlendStateCreateInfo colorBlending = {
    .sType = VK_STRUCTURE_TYPE_PIPELINE_COLOR_BLEND_STATE_CREATE_INFO,
    .logicOpEnable = VK_FALSE,
    .attachmentCount = 1,
    .pAttachments = &colorBlendAttachment,
  };

  VkDynamicState dynamicStates[] = { VK_DYNAMIC_STATE_VIEWPORT, VK_DYNAMIC_STATE_SCISSOR };
  VkPipelineDynamicStateCreateInfo dynamicState = {
    .sType = VK_STRUCTURE_TYPE_PIPELINE_DYNAMIC_STATE_CREATE_INFO,
    .dynamicStateCount = 2,
    .pDynamicStates = dynamicStates,
  };

  VkPipelineLayoutCreateInfo pipelineLayoutInfo = {
    .sType = VK_STRUCTURE_TYPE_PIPELINE_LAYOUT_CREATE_INFO,
  };

  VkPushConstantRange pushConstantRange = {
    .stageFlags = VK_SHADER_STAGE_VERTEX_BIT | VK_SHADER_STAGE_FRAGMENT_BIT,
    .offset = 0,
    .size = SBGL_VK_PUSH_CONSTANT_SIZE,
  };
  pipelineLayoutInfo.pushConstantRangeCount = 1;
  pipelineLayoutInfo.pPushConstantRanges = &pushConstantRange;

  if (ctx->vk.vkCreatePipelineLayout(
      ctx->device,
      &pipelineLayoutInfo,
      NULL,
      &ctx->pipelines[index].layout
    ) != VK_SUCCESS) {
    sbl_arena_rewind(ctx->arena, mark);
    return SBGL_INVALID_HANDLE;
  }

  VkPipelineRenderingCreateInfo renderingCreateInfo = {
    .sType = VK_STRUCTURE_TYPE_PIPELINE_RENDERING_CREATE_INFO,
    .colorAttachmentCount = 1,
    .pColorAttachmentFormats = &ctx->swapchainFormat,
    .depthAttachmentFormat = ctx->depthFormat,
  };

  VkGraphicsPipelineCreateInfo pipelineInfo = {
    .sType = VK_STRUCTURE_TYPE_GRAPHICS_PIPELINE_CREATE_INFO,
    .pNext = &renderingCreateInfo,
    .stageCount = 2,
    .pStages = shaderStages,
    .pVertexInputState = &vertexInputInfo,
    .pInputAssemblyState = &inputAssembly,
    .pViewportState = &viewportState,
    .pRasterizationState = &rasterizer,
    .pMultisampleState = &multisampling,
    .pDepthStencilState = &depthStencil,
    .pColorBlendState = &colorBlending,
    .pDynamicState = &dynamicState,
    .layout = ctx->pipelines[index].layout,
    .renderPass = VK_NULL_HANDLE,
    .subpass = 0,
  };

  if (ctx->vk.vkCreateGraphicsPipelines(
      ctx->device,
      VK_NULL_HANDLE,
      1,
      &pipelineInfo,
      NULL,
      &ctx->pipelines[index].handle
    ) != VK_SUCCESS) {
    ctx->vk.vkDestroyPipelineLayout(ctx->device, ctx->pipelines[index].layout, NULL);
    sbl_arena_rewind(ctx->arena, mark);
    return SBGL_INVALID_HANDLE;
  }

  sbl_arena_rewind(ctx->arena, mark);
  ctx->pipelines[index].active = true;
  return (sbgl_Pipeline)(index + 1);
}

sbgl_gfx_DestroyBuffer()

void sbgl_gfx_DestroyBuffer	(	sbgl_GfxContext *	ctx,
		sbgl_Buffer	handle )

Definition at line 1410 of file sbgl_backend_vulkan.c.

                                                                      {
  /* The system releases the GPU-side buffer handle and, if the memory was
     allocated from the managed heap, returns the range to the sub-allocator
     to mitigate memory fragmentation. Static and Dynamic allocations are
     reclaimed automatically or persist until shutdown. */
  if (handle == SBGL_INVALID_HANDLE)
    return;
  uint32_t index = (uint32_t)handle - 1;
  if (index >= ctx->limits.maxBuffers || !ctx->bufferActive[index])
    return;

  SBGL_VulkanBuffer* buffer = &ctx->buffers[index];
  ctx->vk.vkDestroyBuffer(ctx->device, buffer->handle, NULL);

  if (buffer->heapType == SBGL_HEAP_TYPE_MANAGED) {
    managed_heap_free(ctx, buffer->offset);
  }

  ctx->bufferActive[index] = false;
}

sbgl_gfx_DestroyBufferDeferred()

void sbgl_gfx_DestroyBufferDeferred	(	sbgl_GfxContext *	ctx,
		sbgl_Buffer	buffer )

Marks a buffer for destruction after current frames complete.

This function should be used for temporary buffers that are submitted for GPU execution in the current frame and must not be destroyed until the GPU has finished using them.

Parameters

ctx	The graphics context.
buffer	Handle to the buffer to destroy.

Definition at line 1480 of file sbgl_backend_vulkan.c.

                                                                              {
  /* The system queues the buffer for destruction after the current frame's GPU work
     is guaranteed to be complete, preventing premature release of in-flight resources. */
  if (ctx->deferredCount[ctx->currentFrame] < 64) {
    ctx->deferredBuffers[ctx->currentFrame][ctx->deferredCount[ctx->currentFrame]++] = handle;
  } else {
    /* If the deferred queue is full, the system falls back to immediate destruction
       after a device idle wait to maintain safety at the cost of performance. */
    sbgl_gfx_DeviceWaitIdle(ctx);
    sbgl_gfx_DestroyBuffer(ctx, handle);
  }
}

sbgl_gfx_DestroyComputePipeline()

void sbgl_gfx_DestroyComputePipeline	(	sbgl_GfxContext *	ctx,
		sbgl_ComputePipeline	handle )

Definition at line 1837 of file sbgl_backend_vulkan.c.

                                                                                        {
  /* The system releases the GPU-side pipeline and layout resources and marks
     the internal slot as inactive for future reuse. */
  if (handle == SBGL_INVALID_HANDLE)
    return;
  uint32_t index = (uint32_t)handle - 1;
  if (index >= ctx->limits.maxPipelines || !ctx->computePipelines[index].active)
    return;

  ctx->vk.vkDestroyPipeline(ctx->device, ctx->computePipelines[index].handle, NULL);
  ctx->vk.vkDestroyPipelineLayout(ctx->device, ctx->computePipelines[index].layout, NULL);
  ctx->computePipelines[index].active = false;
}

sbgl_gfx_DestroyPipeline()

void sbgl_gfx_DestroyPipeline	(	sbgl_GfxContext *	ctx,
		sbgl_Pipeline	handle )

Definition at line 1752 of file sbgl_backend_vulkan.c.

                                                                          {
  if (handle == SBGL_INVALID_HANDLE)
    return;
  uint32_t index = (uint32_t)handle - 1;
  if (index >= ctx->limits.maxPipelines || !ctx->pipelines[index].active)
    return;

  ctx->vk.vkDestroyPipeline(ctx->device, ctx->pipelines[index].handle, NULL);
  ctx->vk.vkDestroyPipelineLayout(ctx->device, ctx->pipelines[index].layout, NULL);
  ctx->pipelines[index].active = false;
}

sbgl_gfx_DestroyShader()

void sbgl_gfx_DestroyShader	(	sbgl_GfxContext *	ctx,
		sbgl_Shader	handle )

Definition at line 1540 of file sbgl_backend_vulkan.c.

                                                                      {
  if (handle == SBGL_INVALID_HANDLE)
    return;
  uint32_t index = (uint32_t)handle - 1;
  if (index >= ctx->limits.maxShaders || !ctx->shaders[index].active)
    return;

  ctx->vk.vkDestroyShaderModule(ctx->device, ctx->shaders[index].module, NULL);
  ctx->shaders[index].active = false;
}

sbgl_gfx_DeviceWaitIdle()

void sbgl_gfx_DeviceWaitIdle

(

sbgl_GfxContext *

ctx

)

Definition at line 1317 of file sbgl_backend_vulkan.c.

                                                   {
  if (ctx && ctx->device) {
    ctx->vk.vkDeviceWaitIdle(ctx->device);
  }
}

sbgl_gfx_DispatchCompute()

void sbgl_gfx_DispatchCompute	(	sbgl_GfxContext *	ctx,
		uint32_t	x,
		uint32_t	y,
		uint32_t	z )

Definition at line 1870 of file sbgl_backend_vulkan.c.

                                                                                        {
  /* A compute dispatch command is recorded into the current frame's command buffer,
     triggering parallel execution across the specified workgroup dimensions. */
  ctx->vk.vkCmdDispatch(ctx->commandBuffers[ctx->currentFrame], x, y, z);
}

sbgl_gfx_Draw()

void sbgl_gfx_Draw	(	sbgl_GfxContext *	ctx,
		uint32_t	vertexCount,
		uint32_t	firstVertex,
		uint32_t	instanceCount )

Definition at line 1997 of file sbgl_backend_vulkan.c.

                                                                                                             {
  ctx->vk.vkCmdDraw(ctx->commandBuffers[ctx->currentFrame], vertexCount, instanceCount, firstVertex, 0);
}

sbgl_gfx_DrawIndexed()

void sbgl_gfx_DrawIndexed	(	sbgl_GfxContext *	ctx,
		uint32_t	indexCount,
		uint32_t	firstIndex,
		int32_t	vertexOffset,
		uint32_t	instanceCount )

Definition at line 2001 of file sbgl_backend_vulkan.c.

  {
  ctx->vk.vkCmdDrawIndexed(
    ctx->commandBuffers[ctx->currentFrame],
    indexCount,
    instanceCount,
    firstIndex,
    vertexOffset,
    0
  );
}

sbgl_gfx_DrawIndirect()

void sbgl_gfx_DrawIndirect	(	sbgl_GfxContext *	ctx,
		sbgl_Buffer	buffer,
		size_t	offset,
		uint32_t	drawCount )

Submits a batch of draw calls stored in a GPU buffer.

Parameters

ctx	The graphics context.
buffer	Handle to the buffer containing an array of sbgl_IndirectCommand.
offset	The byte offset into the buffer where the commands begin.
drawCount	The number of commands to execute from the buffer.

Definition at line 2018 of file sbgl_backend_vulkan.c.

  {
  if (handle == SBGL_INVALID_HANDLE)
    return;
  uint32_t index = (uint32_t)handle - 1;
  if (index >= ctx->limits.maxBuffers || !ctx->bufferActive[index])
    return;

  ctx->vk.vkCmdDrawIndexedIndirect(
    ctx->commandBuffers[ctx->currentFrame],
    ctx->buffers[index].handle,
    (VkDeviceSize)offset,
    drawCount,
    sizeof(sbgl_IndirectCommand)
  );
}

sbgl_gfx_EndFrame()

void sbgl_gfx_EndFrame

(

sbgl_GfxContext *

ctx

)

Submits the current frame's commands and presents the image.

Definition at line 1277 of file sbgl_backend_vulkan.c.

                                             {
  ctx->vk.vkEndCommandBuffer(ctx->commandBuffers[ctx->currentFrame]);

  VkPipelineStageFlags waitStages[] = { VK_PIPELINE_STAGE_COLOR_ATTACHMENT_OUTPUT_BIT };

  /* The system utilizes a semaphore indexed by the current image to signal completion
     to the presentation engine, preventing reuse conflicts during high-frequency updates. */
  VkSemaphore signalSemaphore = ctx->renderFinishedSemaphores[ctx->currentImageIndex];

  VkSubmitInfo submitInfo = {
    .sType = VK_STRUCTURE_TYPE_SUBMIT_INFO,
    .waitSemaphoreCount = 1,
    .pWaitSemaphores = &ctx->imageAvailableSemaphores[ctx->semaphoreIndex],
    .pWaitDstStageMask = waitStages,
    .commandBufferCount = 1,
    .pCommandBuffers = &ctx->commandBuffers[ctx->currentFrame],
    .signalSemaphoreCount = 1,
    .pSignalSemaphores = &signalSemaphore,
  };
  ctx->vk
    .vkQueueSubmit(ctx->graphicsQueue, 1, &submitInfo, ctx->inFlightFences[ctx->currentFrame]);

  VkPresentInfoKHR presentInfo = {
    .sType = VK_STRUCTURE_TYPE_PRESENT_INFO_KHR,
    .waitSemaphoreCount = 1,
    .pWaitSemaphores = &signalSemaphore,
    .swapchainCount = 1,
    .pSwapchains = &ctx->swapchain,
    .pImageIndices = &ctx->currentImageIndex,
  };
  VkResult result = ctx->vk.vkQueuePresentKHR(ctx->graphicsQueue, &presentInfo);

  if (result == VK_ERROR_OUT_OF_DATE_KHR || result == VK_SUBOPTIMAL_KHR) {
    recreate_swapchain(ctx);
  }

  ctx->semaphoreIndex = (ctx->semaphoreIndex + 1) % SBGL_MAX_SWAPCHAIN_IMAGES;
  ctx->currentFrame = (ctx->currentFrame + 1) % SBGL_MAX_FRAMES_IN_FLIGHT;
}

sbgl_gfx_EndRenderPass()

void sbgl_gfx_EndRenderPass

(

sbgl_GfxContext *

ctx

)

Ends the current graphics rendering pass.

Definition at line 1240 of file sbgl_backend_vulkan.c.

                                                  {
  /* The system records the ending timestamp at the conclusion of the frame's rendering commands.
   */
  ctx->vk.vkCmdWriteTimestamp(
    ctx->commandBuffers[ctx->currentFrame],
    VK_PIPELINE_STAGE_BOTTOM_OF_PIPE_BIT,
    ctx->queryPool,
    ctx->currentFrame * 2 + 1
  );

  ctx->vk.vkCmdEndRendering(ctx->commandBuffers[ctx->currentFrame]);

  VkImageMemoryBarrier barrier = {
    .sType = VK_STRUCTURE_TYPE_IMAGE_MEMORY_BARRIER,
    .oldLayout = VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL,
    .newLayout = VK_IMAGE_LAYOUT_PRESENT_SRC_KHR,
    .image = ctx->images[ctx->currentImageIndex],
    .subresourceRange = { .aspectMask = VK_IMAGE_ASPECT_COLOR_BIT,
                .levelCount = 1,
                .layerCount = 1 },
    .srcAccessMask = VK_ACCESS_COLOR_ATTACHMENT_WRITE_BIT,
    .dstAccessMask = 0,
  };
  ctx->vk.vkCmdPipelineBarrier(
    ctx->commandBuffers[ctx->currentFrame],
    VK_PIPELINE_STAGE_COLOR_ATTACHMENT_OUTPUT_BIT,
    VK_PIPELINE_STAGE_BOTTOM_OF_PIPE_BIT,
    0,
    0,
    NULL,
    0,
    NULL,
    1,
    &barrier
  );
}

sbgl_gfx_FillBuffer()

void sbgl_gfx_FillBuffer	(	sbgl_GfxContext *	ctx,
		sbgl_Buffer	handle,
		size_t	offset,
		size_t	size,
		uint32_t	value )

Performs a hardware-accelerated buffer fill.

Definition at line 1431 of file sbgl_backend_vulkan.c.

  {
  /* A hardware-accelerated fill operation is recorded into the current frame's
     command buffer, utilizing the GPU's DMA engine for maximum performance. */
  if (handle == SBGL_INVALID_HANDLE)
    return;
  uint32_t index = (uint32_t)handle - 1;
  if (index >= ctx->limits.maxBuffers || !ctx->bufferActive[index])
    return;

  ctx->vk.vkCmdFillBuffer(
    ctx->commandBuffers[ctx->currentFrame],
    ctx->buffers[index].handle,
    (VkDeviceSize)offset,
    (VkDeviceSize)size,
    value
  );
}

sbgl_gfx_GetBufferDeviceAddress()

uint64_t sbgl_gfx_GetBufferDeviceAddress	(	sbgl_GfxContext *	ctx,
		sbgl_Buffer	buffer )

Retrieves the 64-bit GPU virtual address for a buffer.

Used primarily for passing buffer pointers to shaders via push constants or storage buffers when using VK_KHR_buffer_device_address.

Parameters

ctx	The graphics context.
buffer	The buffer to query.

Returns

The 64-bit device address, or 0 if retrieval failed.

Definition at line 1493 of file sbgl_backend_vulkan.c.

                                                                                   {
  /* The system retrieves the 64-bit GPU virtual address for the specified buffer,
     enabling direct memory access within shaders via Buffer Device Address. */
  if (handle == SBGL_INVALID_HANDLE)
    return 0;
  uint32_t index = (uint32_t)handle - 1;
  if (index >= ctx->limits.maxBuffers || !ctx->bufferActive[index])
    return 0;

  VkBufferDeviceAddressInfo info = {
    .sType = VK_STRUCTURE_TYPE_BUFFER_DEVICE_ADDRESS_INFO,
    .buffer = ctx->buffers[index].handle,
  };

  return ctx->vk.vkGetBufferDeviceAddress(ctx->device, &info);
}

sbgl_gfx_GetFrameIndex()

uint32_t sbgl_gfx_GetFrameIndex

(

sbgl_GfxContext *

ctx

)

Retrieves the current backend frame index.

Definition at line 1455 of file sbgl_backend_vulkan.c.

                                                      {
  /* Returns the current frame index, which is used by the core engine to
     manage multi-buffered resources. */
  return ctx->currentFrame;
}

sbgl_gfx_GetGpuTime()

float sbgl_gfx_GetGpuTime

(

sbgl_GfxContext *

ctx

)

Retrieves the elapsed GPU time for the previous frame in milliseconds.

Parameters

ctx	The graphics context.

Returns

The duration in milliseconds.

Definition at line 2100 of file sbgl_backend_vulkan.c.

                                                {
  /* The system retrieves the recorded timestamps from the GPU and calculates the elapsed time
     in milliseconds, providing a non-blocking performance measurement. */
  uint64_t results[2] = { 0 };
  VkResult res = ctx->vk.vkGetQueryPoolResults(
    ctx->device,
    ctx->queryPool,
    ctx->currentFrame * 2,
    2,
    sizeof(results),
    results,
    sizeof(uint64_t),
    VK_QUERY_RESULT_64_BIT
  );

  if (res == VK_SUCCESS) {
    uint64_t start = results[0];
    uint64_t end = results[1];
    return (float)(end - start) * ctx->timestampPeriod / 1e6f;
  }

  return 0.0f;
}

sbgl_gfx_GetLastVkResult()

int32_t sbgl_gfx_GetLastVkResult

(

sbgl_GfxContext *

ctx

)

Retrieves the last VkResult from the backend for error inspection.

Parameters

ctx	The graphics context.

Returns

The last VkResult code, or 0 if no error occurred.

Definition at line 2124 of file sbgl_backend_vulkan.c.

                                                       {
  if (!ctx) return 0;
  return ctx->backendResult;
}

sbgl_gfx_Init()

sbgl_GfxContext * sbgl_gfx_Init	(	sbgl_Window *	window,
		struct SblArena *	arena,
		const sbgl_ResourceLimits *	limits,
		bool	enableValidation )

Initializes the graphics backend with configurable resource limits.

Parameters

window	The platform window handle.
arena	The arena for persistent allocations.
limits	Pointer to resource limits (must not be NULL).
enableValidation	Whether to enable Vulkan validation layers.

Returns

A pointer to the graphics context, or NULL on failure.

Definition at line 986 of file sbgl_backend_vulkan.c.

                                                                                                                                      {
  if (volkInitialize() != VK_SUCCESS) {
    fprintf(stderr, "[Vulkan] Failed to initialize volk\n");
    return NULL;
  }

  sbgl_GfxContext* ctx = SBL_ARENA_PUSH_STRUCT_ZERO(arena, sbgl_GfxContext);
  if (!ctx)
    return NULL;

  ctx->window = window;
  ctx->arena = arena;

  // Apply resource limits (use defaults if not provided)
  if (limits) {
    ctx->limits = *limits;
    // Enforce minimums to prevent crashes
    if (ctx->limits.maxBuffers < 64) ctx->limits.maxBuffers = 64;
    if (ctx->limits.maxShaders < 16) ctx->limits.maxShaders = 16;
    if (ctx->limits.maxPipelines < 16) ctx->limits.maxPipelines = 16;
  } else {
    ctx->limits = sbgl_DefaultResourceLimits;
  }

  // Dynamically allocate resource arrays from the arena
  // Use raw byte allocation since SBGL_Vulkan* types are defined later in this file
  ctx->bufferActive = (bool*)sbl_arena_alloc_zero(arena, sizeof(bool) * ctx->limits.maxBuffers);
  ctx->buffers = (SBGL_VulkanBuffer*)sbl_arena_alloc_zero(arena, sizeof(SBGL_VulkanBuffer) * ctx->limits.maxBuffers);
  ctx->shaders = (SBGL_VulkanShader*)sbl_arena_alloc_zero(arena, sizeof(SBGL_VulkanShader) * ctx->limits.maxShaders);
  ctx->pipelines = (SBGL_VulkanPipeline*)sbl_arena_alloc_zero(arena, sizeof(SBGL_VulkanPipeline) * ctx->limits.maxPipelines);
  ctx->computePipelines = (SBGL_VulkanComputePipeline*)sbl_arena_alloc_zero(arena, sizeof(SBGL_VulkanComputePipeline) * ctx->limits.maxPipelines);

  if (!ctx->bufferActive || !ctx->buffers || !ctx->shaders || !ctx->pipelines || !ctx->computePipelines) {
    fprintf(stderr, "[Vulkan] Failed to allocate resource arrays\n");
    sbgl_gfx_Shutdown(ctx);
    return NULL;
  }

  if (!create_instance(ctx, enableValidation) || !create_surface(ctx, window) || !select_physical_device(ctx) ||
    !create_logical_device(ctx) || !create_heaps(ctx) || !create_swapchain(ctx, window) ||
    !create_sync_and_command(ctx) || !create_telemetry_resources(ctx) ||
    !create_transient_resources(ctx)) {
    sbgl_gfx_Shutdown(ctx);
    return NULL;
  }

  /* The query pool is reset on the host immediately after creation to ensure that all
     queries are in a valid state before the first attempt to retrieve results. */
  ctx->vk.vkResetQueryPool(ctx->device, ctx->queryPool, 0, SBGL_MAX_FRAMES_IN_FLIGHT * 2);

  return ctx;
}

sbgl_gfx_LoadShader()

sbgl_Shader sbgl_gfx_LoadShader	(	sbgl_GfxContext *	ctx,
		sbgl_ShaderStage	stage,
		const uint32_t *	bytecode,
		size_t	size )

Definition at line 1510 of file sbgl_backend_vulkan.c.

  {
  uint32_t index = 0;
  for (; index < ctx->limits.maxShaders; index++) {
    if (!ctx->shaders[index].active)
      break;
  }
  if (index == ctx->limits.maxShaders)
    return SBGL_INVALID_HANDLE;

  VkShaderModuleCreateInfo createInfo = {
    .sType = VK_STRUCTURE_TYPE_SHADER_MODULE_CREATE_INFO,
    .codeSize = size,
    .pCode = bytecode,
  };

  if (ctx->vk.vkCreateShaderModule(ctx->device, &createInfo, NULL, &ctx->shaders[index].module) !=
    VK_SUCCESS) {
    return SBGL_INVALID_HANDLE;
  }

  ctx->shaders[index].stage = stage;
  ctx->shaders[index].active = true;
  return (sbgl_Shader)(index + 1);
}

sbgl_gfx_MapBuffer()

void * sbgl_gfx_MapBuffer	(	sbgl_GfxContext *	ctx,
		sbgl_Buffer	handle )

Definition at line 1461 of file sbgl_backend_vulkan.c.

                                                                   {
  /* The system returns the persistently mapped pointer for the specified buffer,
     enabling high-performance data updates without the overhead of repeated mapping. */
  if (handle == SBGL_INVALID_HANDLE)
    return NULL;
  uint32_t index = (uint32_t)handle - 1;
  if (index >= ctx->limits.maxBuffers || !ctx->bufferActive[index])
    return NULL;

  return ctx->buffers[index].mapped;
}

sbgl_gfx_MemoryBarrier()

void sbgl_gfx_MemoryBarrier	(	sbgl_GfxContext *	ctx,
		sbgl_BarrierType	type )

Definition at line 1876 of file sbgl_backend_vulkan.c.

                                                                         {
  /* The system injects a pipeline barrier into the command stream to synchronize
     memory access between different execution stages, preventing race conditions. */
  VkMemoryBarrier barrier = { .sType = VK_STRUCTURE_TYPE_MEMORY_BARRIER };
  VkPipelineStageFlags srcStage = 0;
  VkPipelineStageFlags dstStage = 0;

  switch (type) {
  case SBGL_BARRIER_COMPUTE_TO_COMPUTE:
    /* Synchronizes compute and transfer (fill) writes to be visible to
       subsequent compute operations. */
    barrier.srcAccessMask = VK_ACCESS_SHADER_WRITE_BIT | VK_ACCESS_TRANSFER_WRITE_BIT;
    barrier.dstAccessMask = VK_ACCESS_SHADER_READ_BIT | VK_ACCESS_SHADER_WRITE_BIT;
    srcStage = VK_PIPELINE_STAGE_COMPUTE_SHADER_BIT | VK_PIPELINE_STAGE_TRANSFER_BIT;
    dstStage = VK_PIPELINE_STAGE_COMPUTE_SHADER_BIT;
    break;
  case SBGL_BARRIER_COMPUTE_TO_INDIRECT:
    /* Synchronizes compute writes to SSBOs for use in indirect draw command buffers. */
    barrier.srcAccessMask = VK_ACCESS_SHADER_WRITE_BIT;
    barrier.dstAccessMask = VK_ACCESS_INDIRECT_COMMAND_READ_BIT;
    srcStage = VK_PIPELINE_STAGE_COMPUTE_SHADER_BIT;
    dstStage = VK_PIPELINE_STAGE_DRAW_INDIRECT_BIT;
    break;
  case SBGL_BARRIER_COMPUTE_TO_GRAPHICS:
    /* Synchronizes compute writes to be visible to vertex input and shader stages. */
    barrier.srcAccessMask = VK_ACCESS_SHADER_WRITE_BIT;
    barrier.dstAccessMask = VK_ACCESS_VERTEX_ATTRIBUTE_READ_BIT | VK_ACCESS_SHADER_READ_BIT;
    srcStage = VK_PIPELINE_STAGE_COMPUTE_SHADER_BIT;
    dstStage = VK_PIPELINE_STAGE_VERTEX_INPUT_BIT | VK_PIPELINE_STAGE_VERTEX_SHADER_BIT;
    break;
  case SBGL_BARRIER_GRAPHICS_TO_COMPUTE:
    /* Synchronizes graphics writes to be visible to subsequent compute operations. */
    barrier.srcAccessMask = VK_ACCESS_SHADER_WRITE_BIT;
    barrier.dstAccessMask = VK_ACCESS_SHADER_READ_BIT | VK_ACCESS_SHADER_WRITE_BIT;
    srcStage = VK_PIPELINE_STAGE_VERTEX_SHADER_BIT | VK_PIPELINE_STAGE_FRAGMENT_SHADER_BIT;
    dstStage = VK_PIPELINE_STAGE_COMPUTE_SHADER_BIT;
    break;
  case SBGL_BARRIER_HOST_TO_COMPUTE:
    /* Synchronizes host writes to be visible to subsequent compute operations. */
    barrier.srcAccessMask = VK_ACCESS_HOST_WRITE_BIT;
    barrier.dstAccessMask = VK_ACCESS_SHADER_READ_BIT | VK_ACCESS_SHADER_WRITE_BIT;
    srcStage = VK_PIPELINE_STAGE_HOST_BIT;
    dstStage = VK_PIPELINE_STAGE_COMPUTE_SHADER_BIT;
    break;
  case SBGL_BARRIER_HOST_TO_GRAPHICS:
    /* Synchronizes host writes to be visible to subsequent graphics (vertex) operations. */
    barrier.srcAccessMask = VK_ACCESS_HOST_WRITE_BIT;
    barrier.dstAccessMask = VK_ACCESS_SHADER_READ_BIT;
    srcStage = VK_PIPELINE_STAGE_HOST_BIT;
    dstStage = VK_PIPELINE_STAGE_VERTEX_SHADER_BIT;
    break;
  }

  ctx->vk.vkCmdPipelineBarrier(
    ctx->commandBuffers[ctx->currentFrame],
    srcStage,
    dstStage,
    0,
    1,
    &barrier,
    0,
    NULL,
    0,
    NULL
  );
}

sbgl_gfx_PushConstants()

void sbgl_gfx_PushConstants	(	sbgl_GfxContext *	ctx,
		size_t	size,
		const void *	data )

Definition at line 2067 of file sbgl_backend_vulkan.c.

                                                                                 {
  /* Push constants are submitted to both the currently bound graphics and compute
     pipelines to ensure that metadata is available across all execution stages. */
  if (size > SBGL_VK_PUSH_CONSTANT_SIZE) {
    fprintf(stderr, "[Vulkan] Push constant size (%zu) exceeds maximum (%d)\n", size, SBGL_VK_PUSH_CONSTANT_SIZE);
    return;
  }

  if (ctx->boundPipeline != SBGL_INVALID_HANDLE) {
    uint32_t index = (uint32_t)ctx->boundPipeline - 1;
    ctx->vk.vkCmdPushConstants(
      ctx->commandBuffers[ctx->currentFrame],
      ctx->pipelines[index].layout,
      VK_SHADER_STAGE_VERTEX_BIT | VK_SHADER_STAGE_FRAGMENT_BIT,
      0,
      (uint32_t)size,
      data
    );
  }

  if (ctx->boundComputePipeline != SBGL_INVALID_HANDLE) {
    uint32_t index = (uint32_t)ctx->boundComputePipeline - 1;
    ctx->vk.vkCmdPushConstants(
      ctx->commandBuffers[ctx->currentFrame],
      ctx->computePipelines[index].layout,
      VK_SHADER_STAGE_COMPUTE_BIT,
      0,
      (uint32_t)size,
      data
    );
  }
}

sbgl_gfx_Shutdown()

void sbgl_gfx_Shutdown

(

sbgl_GfxContext *

ctx

)

Definition at line 1039 of file sbgl_backend_vulkan.c.

                                             {
  if (!ctx)
    return;

  if (ctx->device) {
    ctx->vk.vkDeviceWaitIdle(ctx->device);

    // Clean up all active buffers
    for (uint32_t i = 0; i < ctx->limits.maxBuffers; i++) {
      if (ctx->bufferActive[i]) {
        sbgl_gfx_DestroyBuffer(ctx, (sbgl_Buffer)(i + 1));
      }
    }

    // Clean up all active shaders
    for (uint32_t i = 0; i < ctx->limits.maxShaders; i++) {
      if (ctx->shaders[i].active) {
        sbgl_gfx_DestroyShader(ctx, (sbgl_Shader)(i + 1));
      }
    }

    // Clean up all active pipelines
    for (uint32_t i = 0; i < ctx->limits.maxPipelines; i++) {
      if (ctx->pipelines[i].active) {
        sbgl_gfx_DestroyPipeline(ctx, (sbgl_Pipeline)(i + 1));
      }
      if (ctx->computePipelines[i].active) {
        sbgl_gfx_DestroyComputePipeline(ctx, (sbgl_ComputePipeline)(i + 1));
      }
    }

    // Process any remaining deferred buffers
    for (uint32_t f = 0; f < SBGL_MAX_FRAMES_IN_FLIGHT; f++) {
      for (uint32_t i = 0; i < ctx->deferredCount[f]; i++) {
        sbgl_gfx_DestroyBuffer(ctx, ctx->deferredBuffers[f][i]);
      }
      ctx->deferredCount[f] = 0;
    }

    for (uint32_t i = 0; i < SBGL_MAX_FRAMES_IN_FLIGHT; i++) {
      ctx->vk.vkDestroyFence(ctx->device, ctx->inFlightFences[i], NULL);
    }

    for (uint32_t i = 0; i < SBGL_MAX_SWAPCHAIN_IMAGES; i++) {
      if (ctx->imageAvailableSemaphores[i] != VK_NULL_HANDLE) {
        ctx->vk.vkDestroySemaphore(ctx->device, ctx->imageAvailableSemaphores[i], NULL);
      }
      if (ctx->renderFinishedSemaphores[i] != VK_NULL_HANDLE) {
        ctx->vk.vkDestroySemaphore(ctx->device, ctx->renderFinishedSemaphores[i], NULL);
      }
    }
    ctx->vk.vkDestroyQueryPool(ctx->device, ctx->queryPool, NULL);
    ctx->vk.vkDestroyCommandPool(ctx->device, ctx->commandPool, NULL);

    ctx->vk.vkFreeMemory(ctx->device, ctx->staticHeap.memory, NULL);
    ctx->vk.vkFreeMemory(ctx->device, ctx->dynamicHeap.memory, NULL);
    ctx->vk.vkFreeMemory(ctx->device, ctx->managedHeap.memory, NULL);

    cleanup_swapchain(ctx);
    ctx->vk.vkDestroyDevice(ctx->device, NULL);
  }
  if (ctx->instance) {
    vkDestroySurfaceKHR(ctx->instance, ctx->surface, NULL);
    vkDestroyInstance(ctx->instance, NULL);
  }
}

sbgl_gfx_UnmapBuffer()

void sbgl_gfx_UnmapBuffer	(	sbgl_GfxContext *	ctx,
		sbgl_Buffer	handle )

Definition at line 1473 of file sbgl_backend_vulkan.c.

                                                                    {
  /* Persistent mapping remains active for the buffer's lifecycle, so unmapping
     is a no-op to maintain API compatibility while maximizing performance. */
  (void)ctx;
  (void)handle;
}

sbgl_setup_debug_utils()

static void sbgl_setup_debug_utils ( sbgl_GfxContext * ctx )

static

Definition at line 221 of file sbgl_backend_vulkan.c.

                                                         {
  VkDebugUtilsMessengerCreateInfoEXT createInfo = {
    .sType = VK_STRUCTURE_TYPE_DEBUG_UTILS_MESSENGER_CREATE_INFO_EXT,
    .messageSeverity = VK_DEBUG_UTILS_MESSAGE_SEVERITY_ERROR_BIT_EXT |
                      VK_DEBUG_UTILS_MESSAGE_SEVERITY_WARNING_BIT_EXT,
    .messageType = VK_DEBUG_UTILS_MESSAGE_TYPE_GENERAL_BIT_EXT |
                  VK_DEBUG_UTILS_MESSAGE_TYPE_VALIDATION_BIT_EXT,
    .pfnUserCallback = sbgl_vk_debug_callback,
    .pUserData = NULL,
  };

  PFN_vkCreateDebugUtilsMessengerEXT func =
    (PFN_vkCreateDebugUtilsMessengerEXT)vkGetInstanceProcAddr(
      ctx->instance, "vkCreateDebugUtilsMessengerEXT");

  if (!func) {
    return;
  }

  VkDebugUtilsMessengerEXT messenger;
  if (func(ctx->instance, &createInfo, NULL, &messenger) != VK_SUCCESS) {
    return;
  }

  (void)messenger;
}

sbgl_to_vk_format()

static VkFormat sbgl_to_vk_format ( sbgl_Format format )

static

Definition at line 248 of file sbgl_backend_vulkan.c.

                                                      {
  switch (format) {
  case SBGL_FORMAT_R32_SFLOAT:
    return VK_FORMAT_R32_SFLOAT;
  case SBGL_FORMAT_R32G32_SFLOAT:
    return VK_FORMAT_R32G32_SFLOAT;
  case SBGL_FORMAT_R32G32B32_SFLOAT:
    return VK_FORMAT_R32G32B32_SFLOAT;
  case SBGL_FORMAT_R32G32B32A32_SFLOAT:
    return VK_FORMAT_R32G32B32A32_SFLOAT;
  case SBGL_FORMAT_R16G16B16A16_SNORM:
    return VK_FORMAT_R16G16B16A16_SNORM;
  case SBGL_FORMAT_R8G8B8A8_UNORM:
    return VK_FORMAT_R8G8B8A8_UNORM;
  default:
    return VK_FORMAT_UNDEFINED;
  }
}

sbgl_vk_debug_callback()

static VKAPI_ATTR VkBool32 VKAPI_CALL sbgl_vk_debug_callback ( VkDebugUtilsMessageSeverityFlagBitsEXT messageSeverity, VkDebugUtilsMessageTypeFlagsEXT messageType, const VkDebugUtilsMessengerCallbackDataEXT * pCallbackData, void * pUserData )

static

Definition at line 200 of file sbgl_backend_vulkan.c.

  {
  (void)pUserData;
  (void)messageType;

  sbgl_LogLevel level =
    (messageSeverity & VK_DEBUG_UTILS_MESSAGE_SEVERITY_ERROR_BIT_EXT)
      ? SBGL_LOG_ERROR
      : SBGL_LOG_WARN;

  sbgl_internal_log_impl(level, SBGL_LOG_CAT_GFX,
                         __FILE__, __LINE__, __func__,
                         pCallbackData->pMessage);

  return VK_FALSE;
}

select_physical_device()

static bool select_physical_device ( sbgl_GfxContext * ctx )

static

Definition at line 551 of file sbgl_backend_vulkan.c.

                                                         {
  uint32_t deviceCount = 0;
  vkEnumeratePhysicalDevices(ctx->instance, &deviceCount, NULL);
  if (deviceCount == 0) {
    fprintf(stderr, "[Vulkan] No physical devices found\n");
    return false;
  }

  SblArenaMark mark = sbl_arena_mark(ctx->arena);
  VkPhysicalDevice* devices = SBL_ARENA_PUSH_ARRAY(ctx->arena, VkPhysicalDevice, deviceCount);
  if (!devices)
    return false;
  vkEnumeratePhysicalDevices(ctx->instance, &deviceCount, devices);

  for (uint32_t i = 0; i < deviceCount; i++) {
    VkPhysicalDeviceProperties props;
    vkGetPhysicalDeviceProperties(devices[i], &props);
    if (props.deviceType == VK_PHYSICAL_DEVICE_TYPE_DISCRETE_GPU) {
      ctx->physicalDevice = devices[i];
      printf("[Vulkan] Selected Discrete GPU: %s\n", props.deviceName);
      break;
    }
  }

  if (!ctx->physicalDevice) {
    ctx->physicalDevice = devices[0];
    VkPhysicalDeviceProperties props;
    vkGetPhysicalDeviceProperties(ctx->physicalDevice, &props);
    printf("[Vulkan] Selected GPU: %s\n", props.deviceName);
  }

  sbl_arena_rewind(ctx->arena, mark);
  return true;
}

static_heap_alloc()

static uint32_t static_heap_alloc ( sbgl_GfxContext * ctx, size_t size )

static

Definition at line 281 of file sbgl_backend_vulkan.c.

                                                                     {
  /* The size is rounded up to a 256-byte boundary to satisfy the most stringent
     Vulkan hardware alignment requirements (minUniformBufferOffsetAlignment). */
  uint32_t alignedSize = (uint32_t)((size + 255) & ~255);

  if (ctx->staticHeap.offset + alignedSize > ctx->staticHeap.size) {
    /* If the requested allocation exceeds the remaining capacity of the static heap,
       the context's result state is updated to reflect an out-of-memory error. */
    ctx->result = SBGL_ERROR_OUT_OF_MEMORY;
    return SBGL_INVALID_OFFSET;
  }

  uint32_t offset = ctx->staticHeap.offset;
  ctx->staticHeap.offset += alignedSize;
  return offset;
}

Variable Documentation

sbgl_DefaultResourceLimits

const sbgl_ResourceLimits sbgl_DefaultResourceLimits

static

Initial value:

= {
  .maxBuffers = 1024,
  .maxShaders = 256,
  .maxPipelines = 256
}

Definition at line 26 of file sbgl_backend_vulkan.c.

                                                              {
  .maxBuffers = 1024,
  .maxShaders = 256,
  .maxPipelines = 256
};
