sbgl_camera.h File Reference

Camera system and batch collision math for SBgl. More...

#include "sbgl_math.h"

Include dependency graph for sbgl_camera.h:

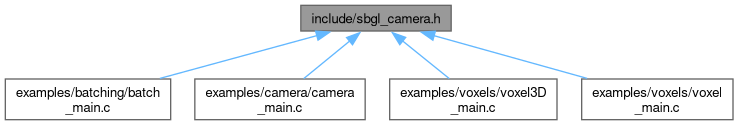

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	sbgl_Camera
	Stateful camera representation. More...
struct	sbgl_Ray
	Mathematical ray. More...
struct	sbgl_AABB
	Axis-Aligned Bounding Box (AABB). More...
struct	sbgl_Sphere
	Bounding sphere. More...
struct	sbgl_HitResult
	Intersection result for batch testing. More...

Enumerations
enum	sbgl_CameraType { SBGL_CAMERA_PERSPECTIVE , SBGL_CAMERA_ORTHOGRAPHIC }
	Camera projection types. More...

Functions
static sbgl_Camera	sbgl_CameraPerspective (float fov_y_rad, float aspect, float near_p, float far_p)
	Initializes a camera with perspective projection.
static sbgl_Camera	sbgl_CameraOrthographic (sbgl_OrthoParams p)
	Initializes a camera with orthographic projection.
static sbgl_Mat4	sbgl_CameraGetView (const sbgl_Camera *cam)
	Computes the view matrix for the given camera.
static sbgl_Mat4	sbgl_CameraGetProjection (const sbgl_Camera *cam)
	Computes the projection matrix for the given camera.
static void	sbgl_RaySphereIntersectBatch (sbgl_Ray ray, const sbgl_Sphere *spheres, sbgl_HitResult *results, uint32_t count)
	Performs a batch ray-sphere intersection test.
static void	sbgl_RayAABBIntersectBatch (sbgl_Ray ray, const sbgl_AABB *boxes, sbgl_HitResult *results, uint32_t count)
	Performs a batch ray-AABB intersection test.

Detailed Description

Camera system and batch collision math for SBgl.

Provides a stateful camera system supporting both perspective and orthographic projections, alongside data-oriented collision testing for rays, spheres, and axis-aligned bounding boxes.

Definition in file sbgl_camera.h.

Enumeration Type Documentation

sbgl_CameraType

enum sbgl_CameraType

Camera projection types.

Enumerator
SBGL_CAMERA_PERSPECTIVE
SBGL_CAMERA_ORTHOGRAPHIC

Definition at line 18 of file sbgl_camera.h.

{ SBGL_CAMERA_PERSPECTIVE, SBGL_CAMERA_ORTHOGRAPHIC } sbgl_CameraType;

Function Documentation

sbgl_CameraGetProjection()

static sbgl_Mat4 sbgl_CameraGetProjection ( const sbgl_Camera * cam )

inlinestatic

Computes the projection matrix for the given camera.

Generates either a perspective or orthographic matrix based on the internal camera type and its associated parameters.

Definition at line 136 of file sbgl_camera.h.

                                                                         {
    if (cam->type == SBGL_CAMERA_PERSPECTIVE) {
        return sbgl_Mat4Perspective(cam->fov_y, cam->aspect, cam->near_plane, cam->far_plane);
    }
    sbgl_OrthoParams p = { .left = cam->ortho_left,
                           .right = cam->ortho_right,
                           .bottom = cam->ortho_bottom,
                           .top = cam->ortho_top,
                           .near_p = cam->near_plane,
                           .far_p = cam->far_plane };
    return sbgl_Mat4Orthographic(p);
}

sbgl_CameraGetView()

static sbgl_Mat4 sbgl_CameraGetView ( const sbgl_Camera * cam )

inlinestatic

Computes the view matrix for the given camera.

Generates a look-at matrix based on the current position, target, and up vectors of the camera state.

Definition at line 126 of file sbgl_camera.h.

                                                                   {
    return sbgl_Mat4LookAt(cam->position, cam->target, cam->up);
}

sbgl_CameraOrthographic()

static sbgl_Camera sbgl_CameraOrthographic ( sbgl_OrthoParams p )

inlinestatic

Initializes a camera with orthographic projection.

Sets the camera to use a parallel projection defined by the viewport boundaries and clipping planes.

Definition at line 105 of file sbgl_camera.h.

                                                                      {
    sbgl_Camera cam = { 0 };
    cam.type = SBGL_CAMERA_ORTHOGRAPHIC;
    cam.position = sbgl_Vec3Set(0, 0, 1);
    cam.target = sbgl_Vec3Set(0, 0, 0);
    cam.up = sbgl_Vec3Set(0, 1, 0);
    cam.ortho_left = p.left;
    cam.ortho_right = p.right;
    cam.ortho_bottom = p.bottom;
    cam.ortho_top = p.top;
    cam.near_plane = p.near_p;
    cam.far_plane = p.far_p;
    return cam;
}

sbgl_CameraPerspective()

static sbgl_Camera sbgl_CameraPerspective ( float fov_y_rad, float aspect, float near_p, float far_p )

inlinestatic

Initializes a camera with perspective projection.

Sets the camera to use a perspective frustum defined by the field of view, aspect ratio, and clipping planes.

Definition at line 86 of file sbgl_camera.h.

                                                                                 {
    sbgl_Camera cam = { 0 };
    cam.type = SBGL_CAMERA_PERSPECTIVE;
    cam.position = sbgl_Vec3Set(0, 0, 5);
    cam.target = sbgl_Vec3Set(0, 0, 0);
    cam.up = sbgl_Vec3Set(0, 1, 0);
    cam.fov_y = fov_y_rad;
    cam.aspect = aspect;
    cam.near_plane = near_p;
    cam.far_plane = far_p;
    return cam;
}

sbgl_RayAABBIntersectBatch()

static void sbgl_RayAABBIntersectBatch ( sbgl_Ray ray, const sbgl_AABB * boxes, sbgl_HitResult * results, uint32_t count )

inlinestatic

Performs a batch ray-AABB intersection test.

Tests a single ray against an array of axis-aligned bounding boxes using the slab method. Populates the results array with intersection data.

Definition at line 195 of file sbgl_camera.h.

  {
    sbgl_Vec3 inv_dir = {
        { 1.0f / ray.direction.x, 1.0f / ray.direction.y, 1.0f / ray.direction.z, 0.0f }
    };

    for (uint32_t i = 0; i < count; ++i) {
        float t1 = (boxes[i].min.x - ray.origin.x) * inv_dir.x;
        float t2 = (boxes[i].max.x - ray.origin.x) * inv_dir.x;
        float tmin = fminf(t1, t2);
        float tmax = fmaxf(t1, t2);

        t1 = (boxes[i].min.y - ray.origin.y) * inv_dir.y;
        t2 = (boxes[i].max.y - ray.origin.y) * inv_dir.y;
        tmin = fmaxf(tmin, fminf(t1, t2));
        tmax = fminf(tmax, fmaxf(t1, t2));

        t1 = (boxes[i].min.z - ray.origin.z) * inv_dir.z;
        t2 = (boxes[i].max.z - ray.origin.z) * inv_dir.z;
        tmin = fmaxf(tmin, fminf(t1, t2));
        tmax = fminf(tmax, fmaxf(t1, t2));

        results[i].hit = (tmax >= tmin && tmax > 0);
        if (results[i].hit) {
            results[i].distance = tmin > 0 ? tmin : tmax;
            results[i].point =
                sbgl_Vec3Add(ray.origin, sbgl_Vec3Mul(ray.direction, results[i].distance));

            // Calculate normal based on which face was hit
            sbgl_Vec3 center = sbgl_Vec3Mul(sbgl_Vec3Add(boxes[i].min, boxes[i].max), 0.5f);
            sbgl_Vec3 p = sbgl_Vec3Sub(results[i].point, center);
            sbgl_Vec3 d = sbgl_Vec3Mul(sbgl_Vec3Sub(boxes[i].max, boxes[i].min), 0.5f);
            float epsilon = 0.0001f;

            results[i].normal = sbgl_Vec3Set(0, 0, 0);
            if (fabsf(p.x) >= fabsf(d.x) - epsilon)
                results[i].normal.x = p.x > 0 ? 1.0f : -1.0f;
            else if (fabsf(p.y) >= fabsf(d.y) - epsilon)
                results[i].normal.y = p.y > 0 ? 1.0f : -1.0f;
            else if (fabsf(p.z) >= fabsf(d.z) - epsilon)
                results[i].normal.z = p.z > 0 ? 1.0f : -1.0f;
        }
    }
}

sbgl_RaySphereIntersectBatch()

static void sbgl_RaySphereIntersectBatch ( sbgl_Ray ray, const sbgl_Sphere * spheres, sbgl_HitResult * results, uint32_t count )

inlinestatic

Performs a batch ray-sphere intersection test.

Tests a single ray against an array of spheres, populating the results array with hit information for each sphere.

Definition at line 155 of file sbgl_camera.h.

  {
    for (uint32_t i = 0; i < count; ++i) {
        sbgl_Vec3 oc = sbgl_Vec3Sub(ray.origin, spheres[i].center);
        float a = sbgl_Vec3Dot(ray.direction, ray.direction);
        float b = 2.0f * sbgl_Vec3Dot(oc, ray.direction);
        float c = sbgl_Vec3Dot(oc, oc) - spheres[i].radius * spheres[i].radius;
        float discriminant = b * b - 4 * a * c;

        results[i].hit = false;
        if (discriminant >= 0) {
            float sqrt_d = sqrtf(discriminant);
            float t0 = (-b - sqrt_d) / (2.0f * a);
            float t1 = (-b + sqrt_d) / (2.0f * a);

            float t = t0;
            if (t < 0)
                t = t1;

            if (t > 0) {
                results[i].hit = true;
                results[i].distance = t;
                results[i].point = sbgl_Vec3Add(ray.origin, sbgl_Vec3Mul(ray.direction, t));
                results[i].normal =
                    sbgl_Vec3Normalize(sbgl_Vec3Sub(results[i].point, spheres[i].center));
            }
        }
    }
}
