sbgl_pool.h File Reference

#include "sbgl_math.h"
#include "core/sbl_arena.h"
#include <stdint.h>
#include <stdbool.h>

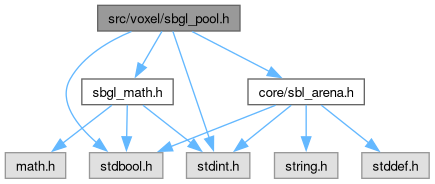

Include dependency graph for sbgl_pool.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	sbgl_ivec3
	3D integer vector for chunk coordinates. More...
struct	VoxelPool
	VoxelPool manages a fixed number of slots for voxel chunks. It uses a flat array layout to maintain cache efficiency. More...

Functions
VoxelPool *	VoxelPool_Init (SblArena *arena, uint32_t capacity)
	Initializes a VoxelPool on the provided arena.
int32_t	VoxelPool_AcquireSlot (VoxelPool *pool, sbgl_ivec3 pos, bool *is_new)
	Acquires a slot for a given chunk position. Returns the slot index (0 to capacity-1). If the position is already in a slot, returns that index and sets is_new to false. If not, recycles the least recently used slot and sets is_new to true.
void	VoxelPool_UpdateFrame (VoxelPool *pool, uint64_t frame)
	Advances the pool's internal frame counter for LRU tracking.

Function Documentation

VoxelPool_AcquireSlot()

int32_t VoxelPool_AcquireSlot	(	VoxelPool *	pool,
		sbgl_ivec3	pos,
		bool *	is_new )

Acquires a slot for a given chunk position. Returns the slot index (0 to capacity-1). If the position is already in a slot, returns that index and sets is_new to false. If not, recycles the least recently used slot and sets is_new to true.

Parameters

pool	Pointer to the VoxelPool.
pos	The world coordinates of the chunk.
is_new	Output pointer to indicate if the slot was newly assigned/recycled.

Returns

Index of the acquired slot.

Definition at line 25 of file sbgl_pool.c.

                                                                             {
  // Search for an existing slot with matching coordinates to avoid duplicates.
  // This first pass ensures that active chunks are not accidentally overwritten.
  for (uint32_t i = 0; i < pool->capacity; ++i) {
    if (pool->active[i]) {
      if (pool->positions[i].x == pos.x &&
          pool->positions[i].y == pos.y &&
          pool->positions[i].z == pos.z) {
        // The slot is already in the pool; update its timestamp and return.
        pool->last_used_frames[i] = pool->current_frame;
        if (is_new) *is_new = false;
        return (int32_t)i;
      }
    }
  }

  // If no matching slot was found, search for an available or least recently used slot.
  int32_t lru_index = -1;
  int32_t empty_index = -1;
  uint64_t min_frame = UINT64_MAX;

  for (uint32_t i = 0; i < pool->capacity; ++i) {
    if (!pool->active[i]) {
      // Locate the first available empty slot for immediate assignment.
      if (empty_index == -1) {
        empty_index = (int32_t)i;
      }
    } else {
      // Track the oldest active slot to serve as a candidate for eviction.
      if (pool->last_used_frames[i] < min_frame) {
        min_frame = pool->last_used_frames[i];
        lru_index = (int32_t)i;
      }
    }
  }

  // Select the empty slot if one exists; otherwise, recycle the LRU candidate.
  int32_t target_index = (empty_index != -1) ? empty_index : lru_index;

  // In the event that no slot can be identified, return an invalid index.
  if (target_index == -1) {
    return -1;
  }

  // Finalize the acquisition by updating the slot's state and position metadata.
  pool->active[target_index] = 1;
  pool->positions[target_index] = pos;
  pool->last_used_frames[target_index] = pool->current_frame;
  if (is_new) *is_new = true;

  return target_index;
}

VoxelPool_Init()

VoxelPool * VoxelPool_Init	(	SblArena *	arena,
		uint32_t	capacity )

Initializes a VoxelPool on the provided arena.

Parameters

arena	Pointer to the memory arena to allocate from.
capacity	Maximum number of slots in the pool.

Returns

Pointer to the initialized VoxelPool.

The VoxelPool uses a simple linear search for coordinate mapping. For small capacities (like 512 slots), this is extremely cache-friendly and avoids the complexity of a hash map.

Definition at line 10 of file sbgl_pool.c.

                                                              {
  VoxelPool* pool = (VoxelPool*)sbl_arena_alloc_zero(arena, sizeof(VoxelPool));
  if (!pool) return NULL;
  pool->capacity = capacity;

  // Allocate arrays for slot data on the arena to maintain contiguous memory.
  pool->positions = (sbgl_ivec3*)sbl_arena_alloc_zero(arena, sizeof(sbgl_ivec3) * capacity);
  pool->last_used_frames = (uint64_t*)sbl_arena_alloc_zero(arena, sizeof(uint64_t) * capacity);
  pool->active = (uint8_t*)sbl_arena_alloc_zero(arena, sizeof(uint8_t) * capacity);

  if (!pool->positions || !pool->last_used_frames || !pool->active) return NULL;

  return pool;
}

VoxelPool_UpdateFrame()

void VoxelPool_UpdateFrame	(	VoxelPool *	pool,
		uint64_t	frame )

Advances the pool's internal frame counter for LRU tracking.

Parameters

pool	Pointer to the VoxelPool.
frame	The current frame index.

Definition at line 78 of file sbgl_pool.c.

                                                            {
  pool->current_frame = frame;
}
